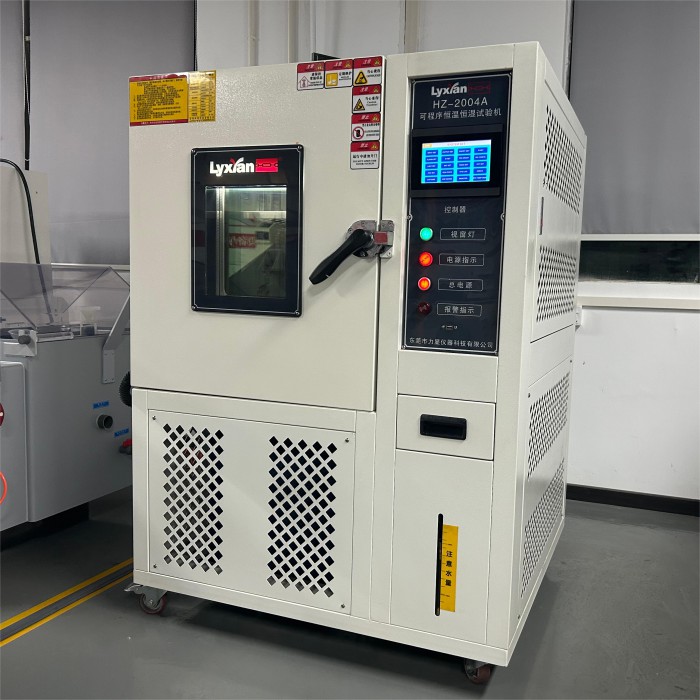

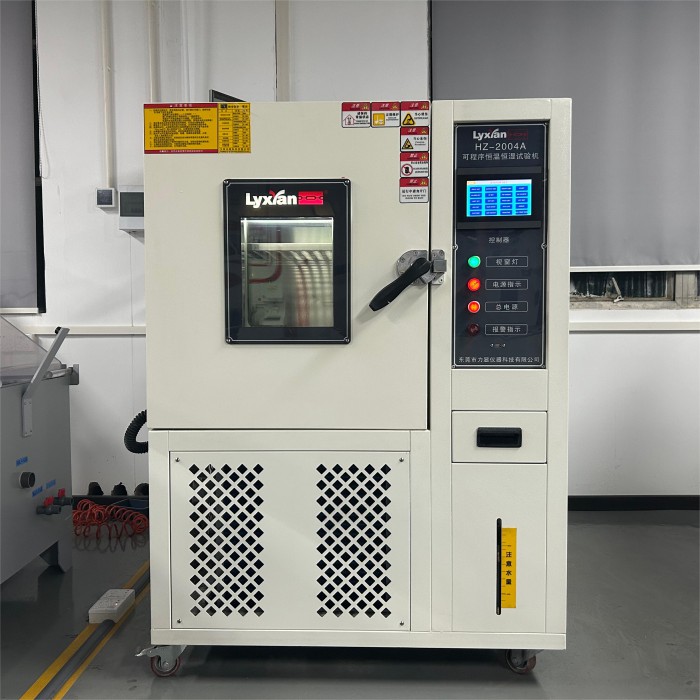

HZ-2004 150L Frequency Conversion Plastic Constant Temperature and Humidity Test Chamber

Constant Temperature And Humidity Test Chamber is applied to test the luggage suitcase in heat-resistance, cold-resistance, dry-resistance, moisture-resistance.The language can choose either English or Chinese and with the touch-screen liquid crystal display screen, simple to operate and program easy to edit.

Equipment Introduction
Plastic Constant temperature and humidity testing machine is suitable for the whole machine or large-scale parts to do the low temperature, high temperature, the change of high and low temperature, constant humidity and heating, high-low temperature alternating humidity and heating test. Provide large-scale parts,semi-finished product, finished product for Large-scale temperature and humidity testing environment space to industry. It is mainly composed of control panel,switchboard,moisturizing base plate blower, heating machine, humidity machine, refrigerator. And we also can design the chamber size and function according customers’ need. Block type enclosed cabinet,nice appearance, scientifical airduct design..


Programmable constant temperature and humidity testing machine

Plastic Constant Humidity Temperature Chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

Features

1. Constant temperature and humidity testing machine with the function of widely temperature and humidity controlling range.

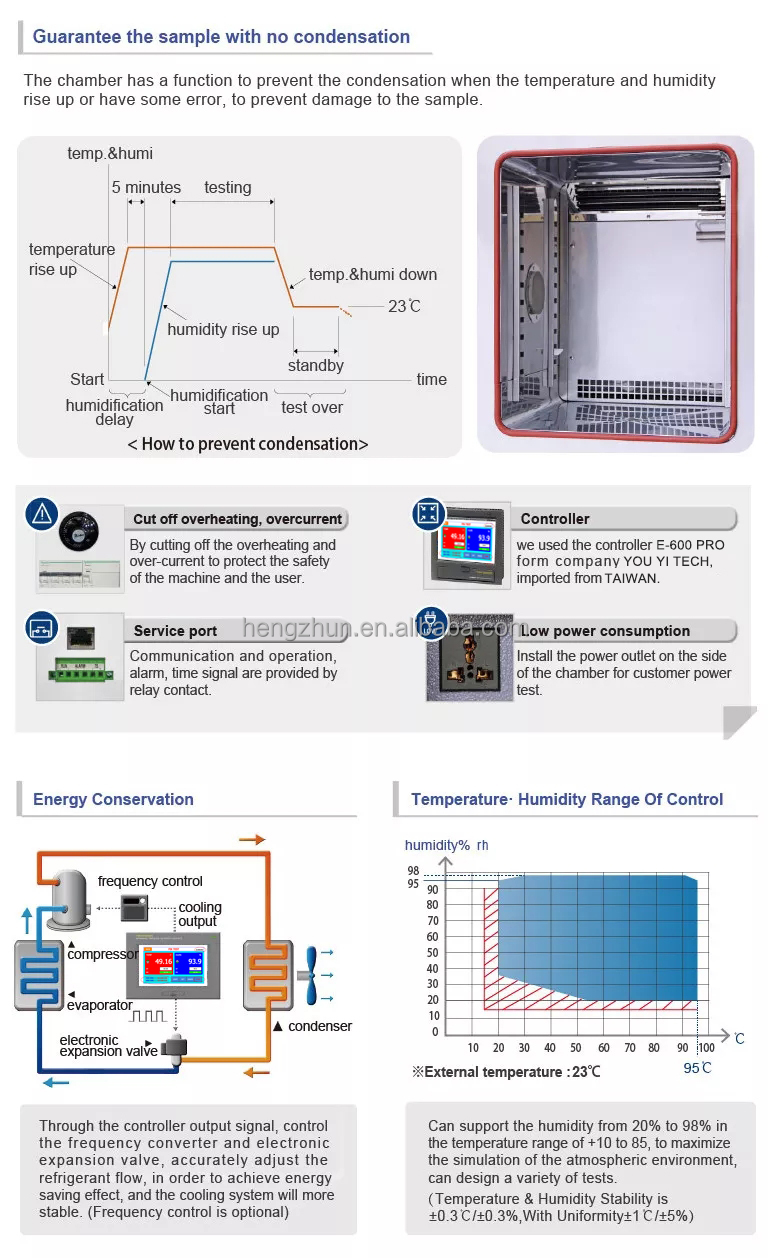

2. Apply special way to balance temperature and humidity, so that can reach the safety and accuracy temperature humidity environment. With the function of stable and balancing heating and humidity, can do high precision and stable temperature control.

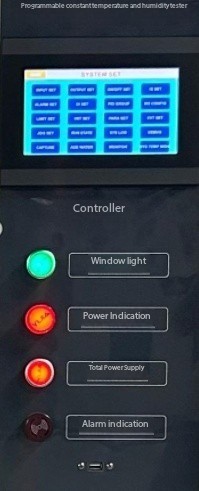

3. Constant temperature machine equipped with PT100 and high precision and intelligent temperature controller, the digital displayed by touch-screen. Option: temperature and humidity recorder.
4. Constant temperature and humidity testing machine can automatically choose refrigerating circuit, the automatical control device with the function that can automatically choose the refrigerating circuit with the temperature setting, to reach directly turn on the refrigerator to cooling under the high temperature condition.

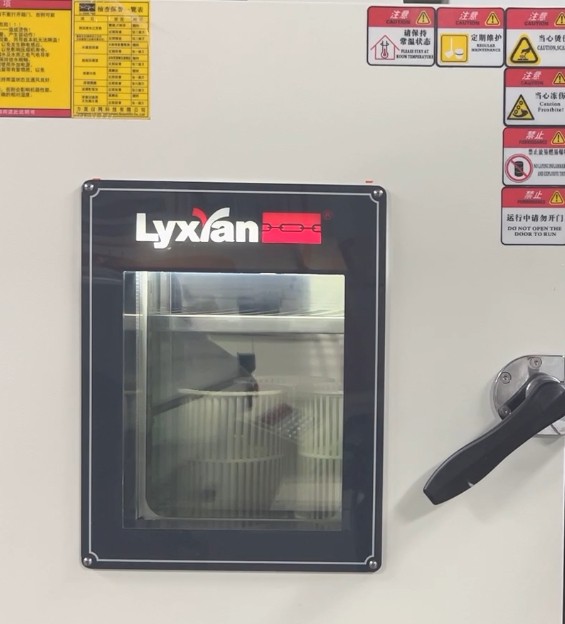

5. Constant temperature and humidity testing machine equipped with big view window, is convenient for observing the testing statue of testing sample
6. Constant temperature and humidity testing machine equipped with advanced safety and protective devices, including residual current circuit breaker, overtemperature protective device, open-phase protector, water protector.


Application
It suitable for the national defence industry, aerospace industry, automatic parts, auto parts, electric part, luggage and bag, Electronic chip, Mobile phone, plastic and rubber, chemical engineering, medicine industry, institutions to do the heating resistant and cold resistant.

Detailed Parameters
ModelHZ-80
 (A~G)
HZ-150
 (A~G)
HZ-225
 (A~G)
HZ-408
 (A~G)
HZ-608
(A~G)
HZ-800
(A~G)
HZ-1000
 (A~G)

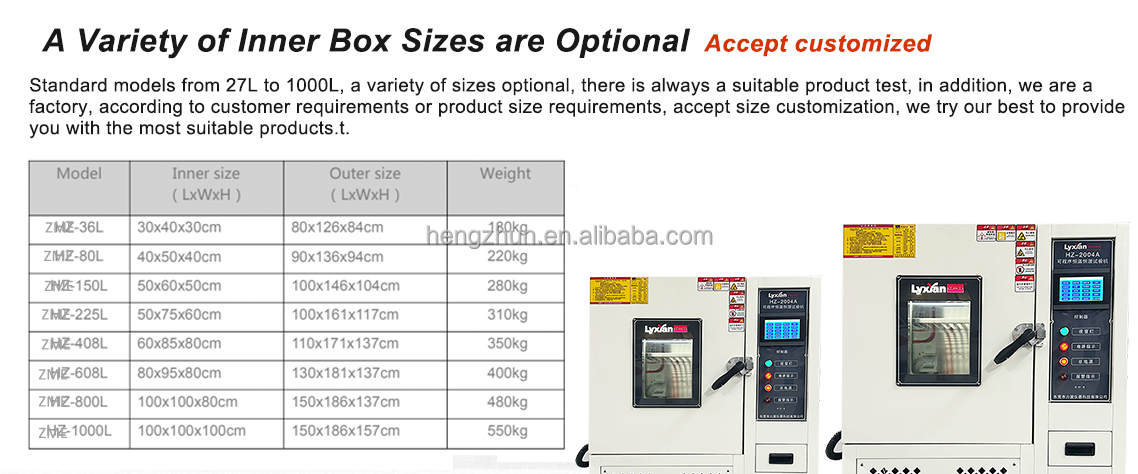

Inside size W*H*D(cm)40x50x4050x60x5050x75x6060x85x8080x95x80100x100x80100x100x100
Outside size W*H*D(cm)90x136x94100x146x104100x161x117110x171x137130x181x137150x186x137150x186x157
Temperature Range-70℃~+100℃(150℃)  (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)
Humidity Range20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition)
Accuracy/ Uniformly±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H.
Accuracy / Volatility±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H.
Heating / Cooling TimeAbout 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition)

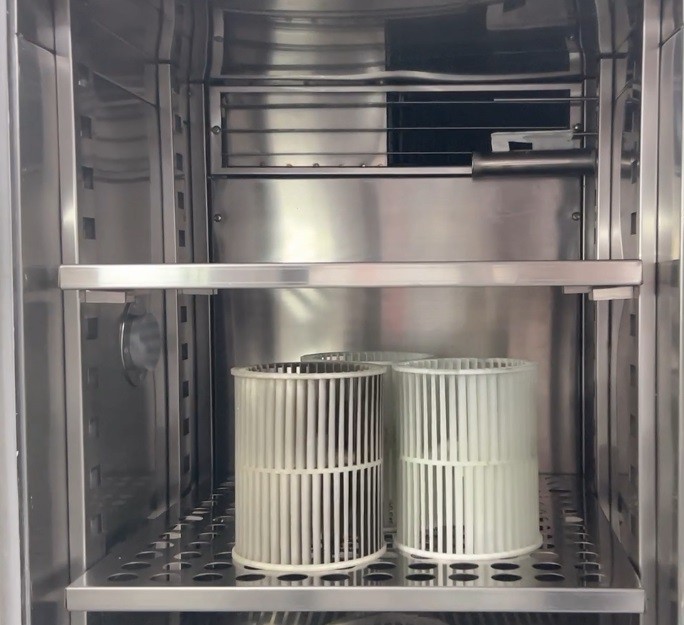

Inside MaterialStainless steel SUS 304#
Insulation MaterialHigh-temperature high-density amino acid ethyl ester foam insulation materials,

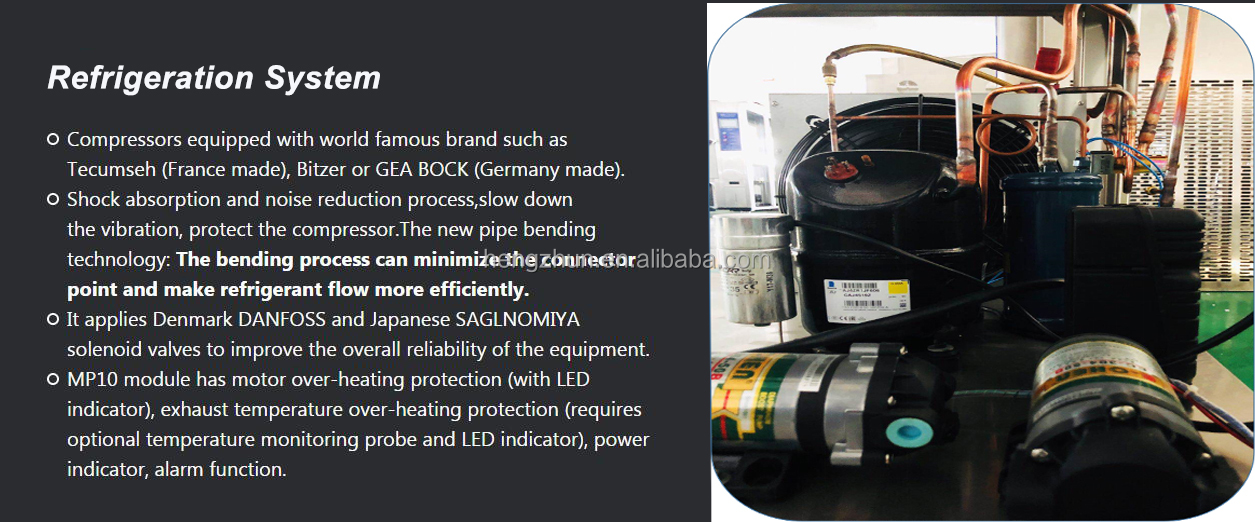

Cooling SystemAir-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃)
ProtectionCompressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system

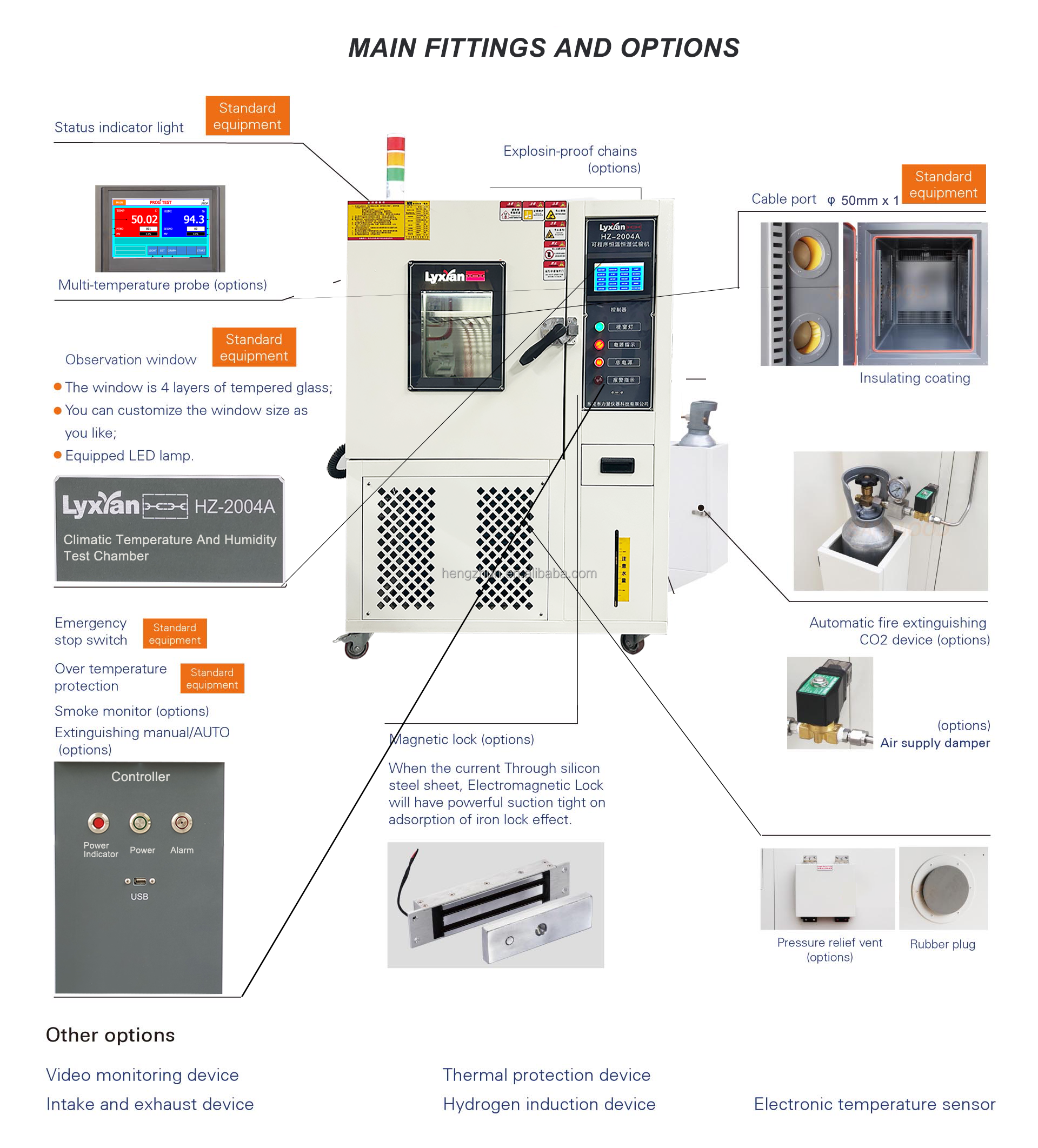

AccessoriesRecorder(purchase)、view window、50mm testing hole、PL lamp、clapboard、Dry and wet gauze ball
ControllerTEMI880 touch screen controller from South Korea,"Weilun" from Taiwan
