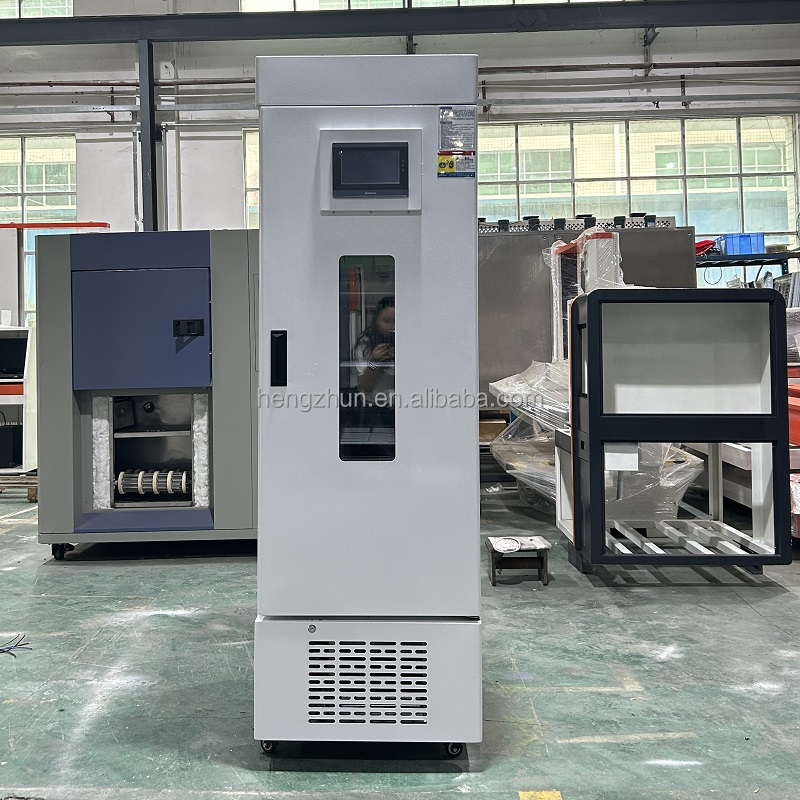

Lixian HZ-2004F 150L Capacity Frequency Conversion Mold Digital Temperature Humidity Incubator Equipment

Product Overview:

The mold incubator is a type of incubator, which is mainly used to cultivate organisms and plants. The corresponding temperature and humidity are set in a closed space to make the mold grow in about 4-6 hours. It is used to accelerate the artificial reproduction of mold and assess the mold resistance and mold degree of electrical and electronic products. It is an important detection method in artificial three-proof climate. It is used by colleges and universities, medicine, military industry, electronics, chemical industry, and biological research departments to store strains and cultivate organisms. It is a necessary test equipment for scientific research laboratories. It is used to test and judge its parameters and performance after changes in hot and humid temperature environment.

Operation and control:
1. Standard 30-segment programmable temperature and humidity controller, PID controller, precise control with small fluctuations.

2. The screen digitally displays the set temperature, measured temperature; set humidity, measured humidity; programming paragraphs, etc.

3. The ultra-large touch screen (LCD display) is used, the screen operation is simple, and the program editing is easy.

4. P.I.D control makes the temperature and humidity control more accurate and stable.

5. A standard ultraviolet sterilization lamp can be sterilized at any time according to needs.

6. (Optional) It can be connected to a printer or 485 communication interface, and the temperature and humidity data can be displayed on a computer, providing a strong guarantee for the data storage and playback during the test process.

7. (Optional) The operation mode can be equipped with an 8-inch touch screen operation, which can display the temperature and humidity curve in real time.

Alarm protection:

1. Over-temperature alarm: The equipment has a built-in temperature deviation alarm function. When the temperature exceeds the set upper limit, an audible and visual alarm will be issued and the machine will automatically shut down.

2. Timing alarm: When the equipment reaches the set time, an audible and visual alarm will be issued and the operation will stop (timing 0~9999min)

(Optional) Independent temperature limit alarm system, which will automatically interrupt the operation when the limit temperature is exceeded, and an audible and visual alarm will be issued to remind the operator to ensure the safe operation of the experiment without accidents.

Air duct design:

The uniquely designed convection air duct, combined with high-quality fans and soft wind convection circulation, minimizes the evaporation of samples while improving the temperature uniformity in the box.

Temperature control configuration:

1. Original imported fully enclosed compressor refrigeration, reliable refrigeration effect

2. To protect the refrigeration compressor, the control circuit is designed with power-off protection and 3-minute delay function.

Humidity control configuration:

1. Adopt external ultrasonic atomizing humidifier for propylene, reliable humidification, uniform humidity and large capacity.

2. (Optional) Hidden humidifier, directly humidified with tap water pipe, equipped with water quality filtration device, automatic water supply.

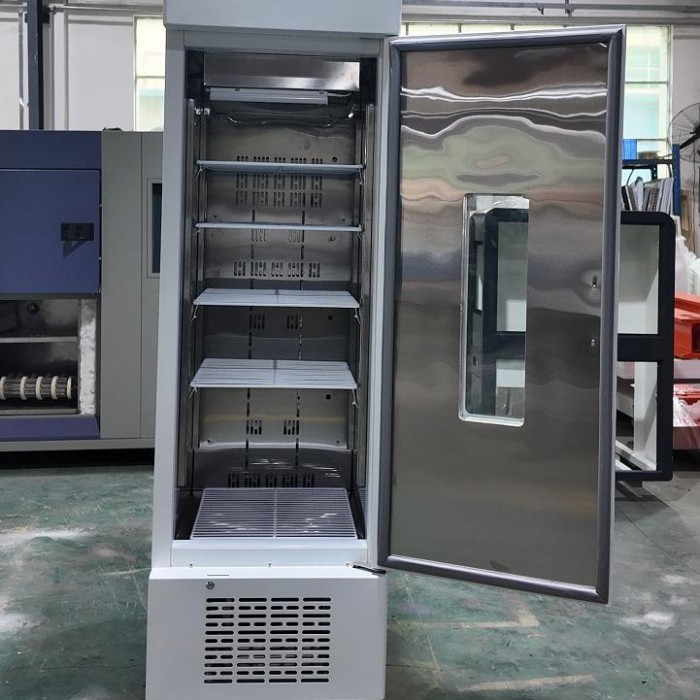

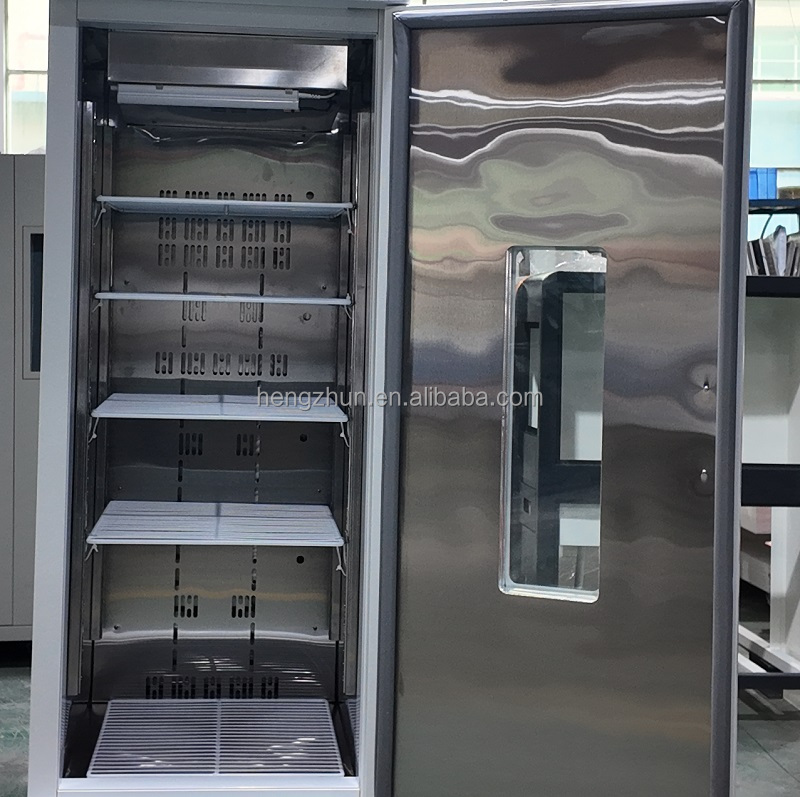

Box design:

1. The inner shell of the box is made of high-quality 304 stainless steel, processed by argon arc welding, corrosion-resistant and easy to clean. The outer shell is made of cold-rolled steel plate spray paint

2. The outer shell of the box is processed by imported high-precision CNC machine tools, combined with luxurious electrostatic spraying, and the appearance is stable and generous. 3. The door seal adopts high-quality silicone sealing strip to improve the insulation effect and extend the service life. 4. Thickened foam insulation layer, significant insulation effect, more energy-saving. 5. Large observation window to avoid opening the outer door to observe the culture.

Specification

Name	Mold incubator
Model	HZ-2004F
Volume	150L
Inner tank size	500500610 (lengthwidthheight) mm
Dimensions	6006701200 (lengthwidthheight) mm
Temperature control range	0-60℃ ;Fluctuation ±1℃
Humidity control range	50%~95%RH ; ±5%RH
