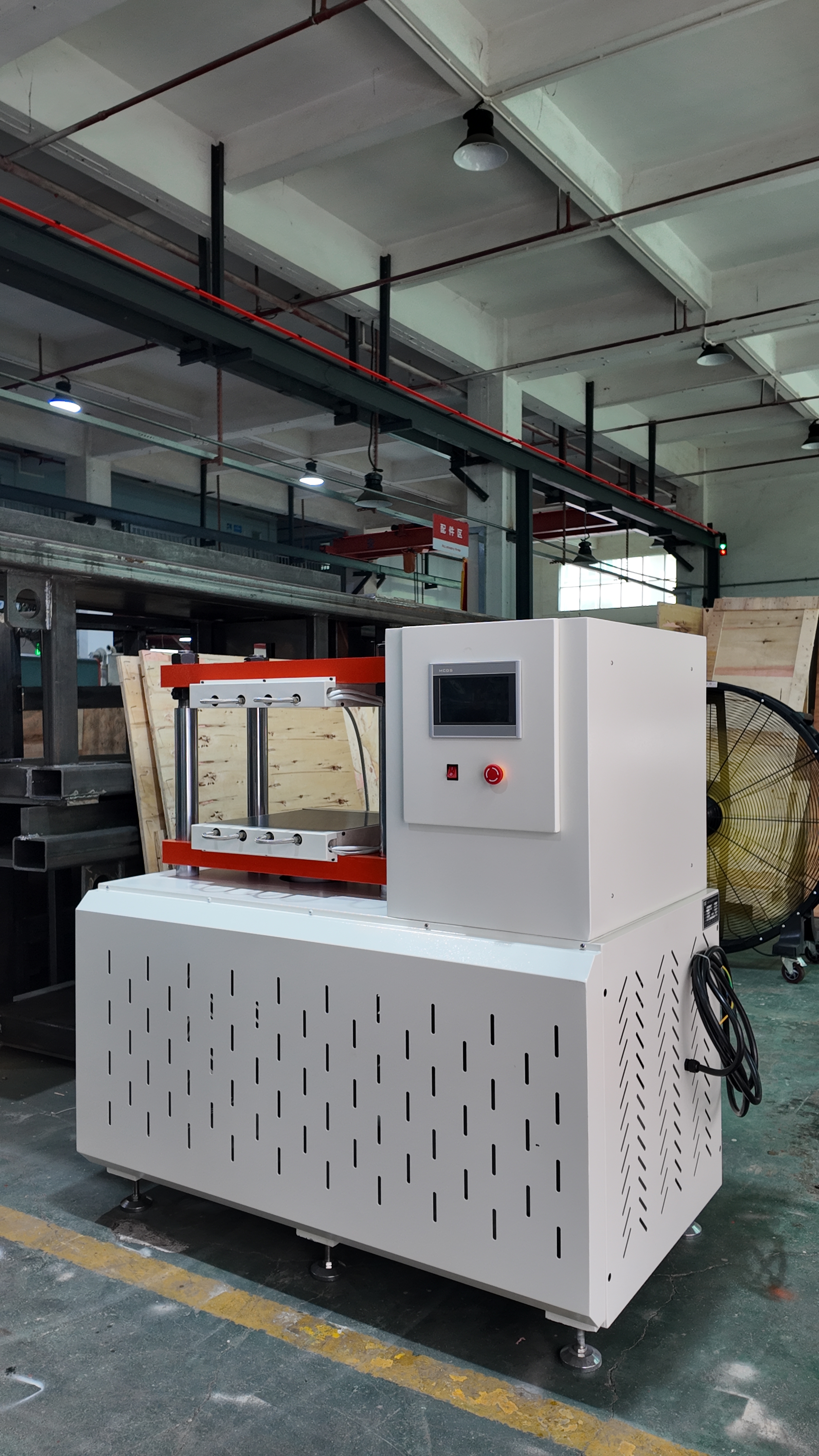

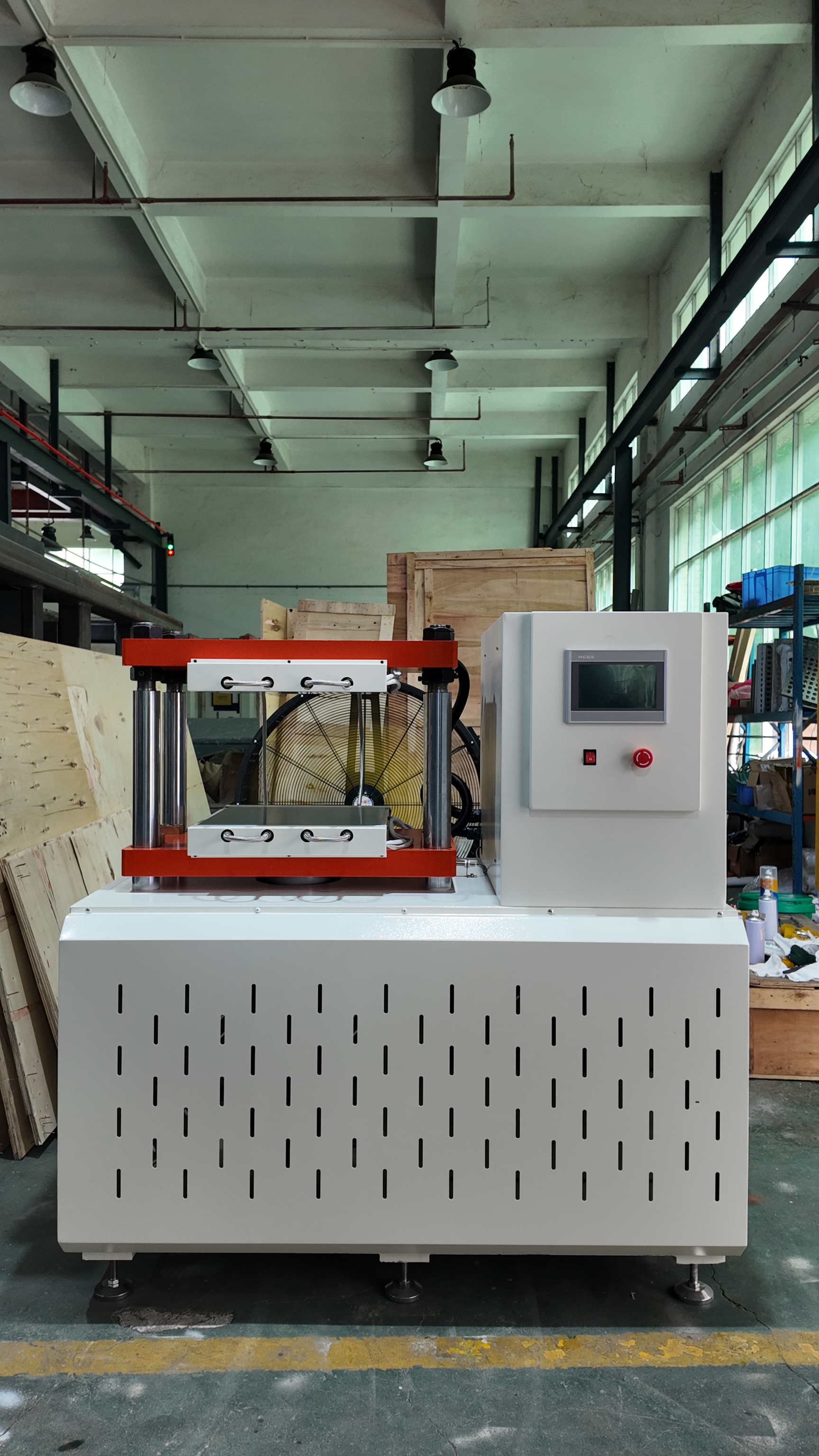

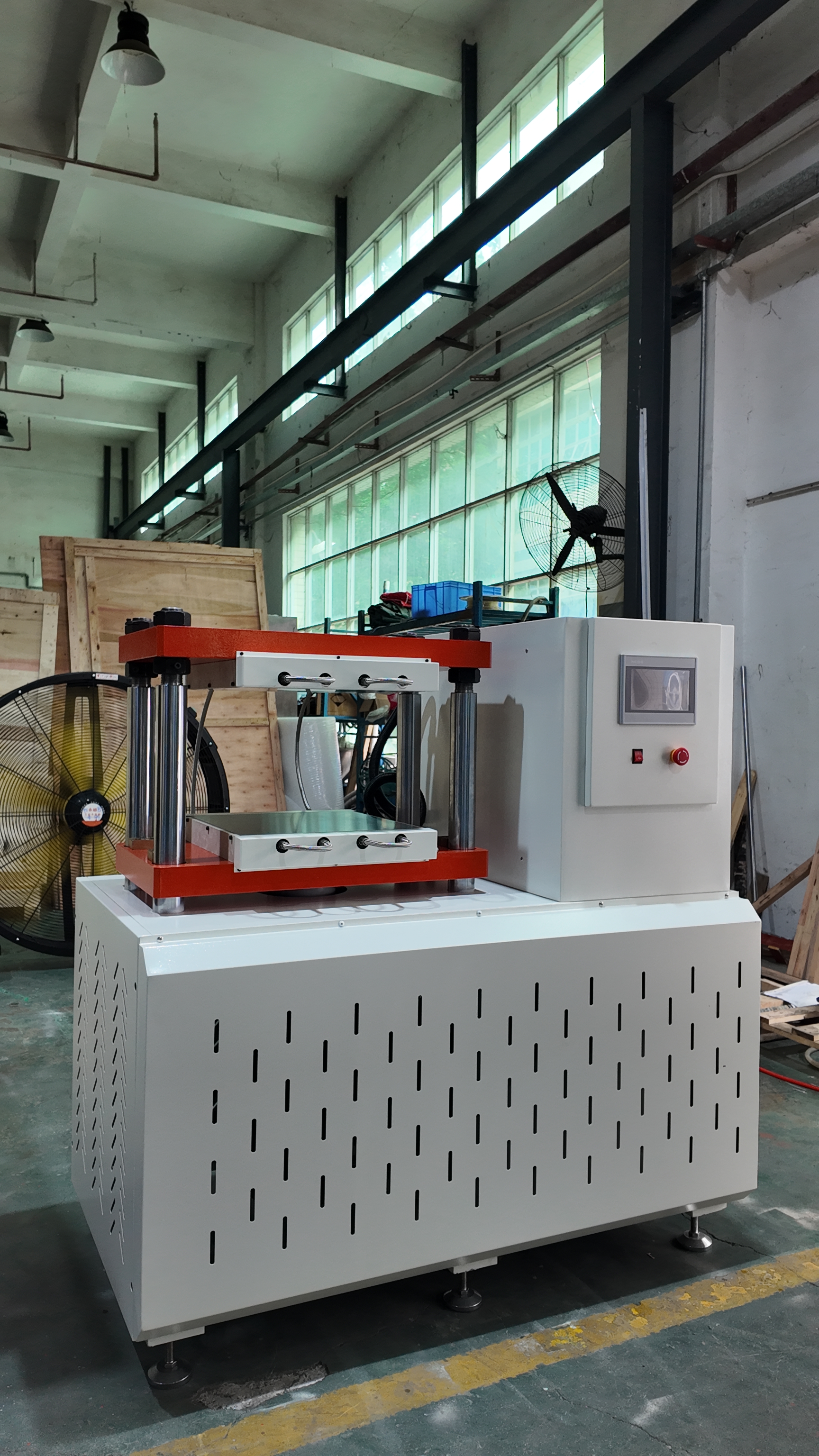

The HZ‑7014A flat vulcanizing machine is a heavy‑duty hydraulic hot press designed for vulcanization and compression molding of rubber, silicone,
foamed materials and thermosetting plastics. It delivers stable pressure and accurate heating for molded & non‑molded rubber products, widely adopted in
laboratory R&D and mass production.
Equipped with independent hydraulic actuator and electric control system, this vulcanizer supports manual and semi‑automatic dual operation modes.
Working pressure and heating temperature are adjustable within setting range. Featuring automatic exhaust, timed mold opening, auto pressure compensation,
alarm reminder and safety interlock, the machine realizes high‑automation, energy‑saving and stable running performance.

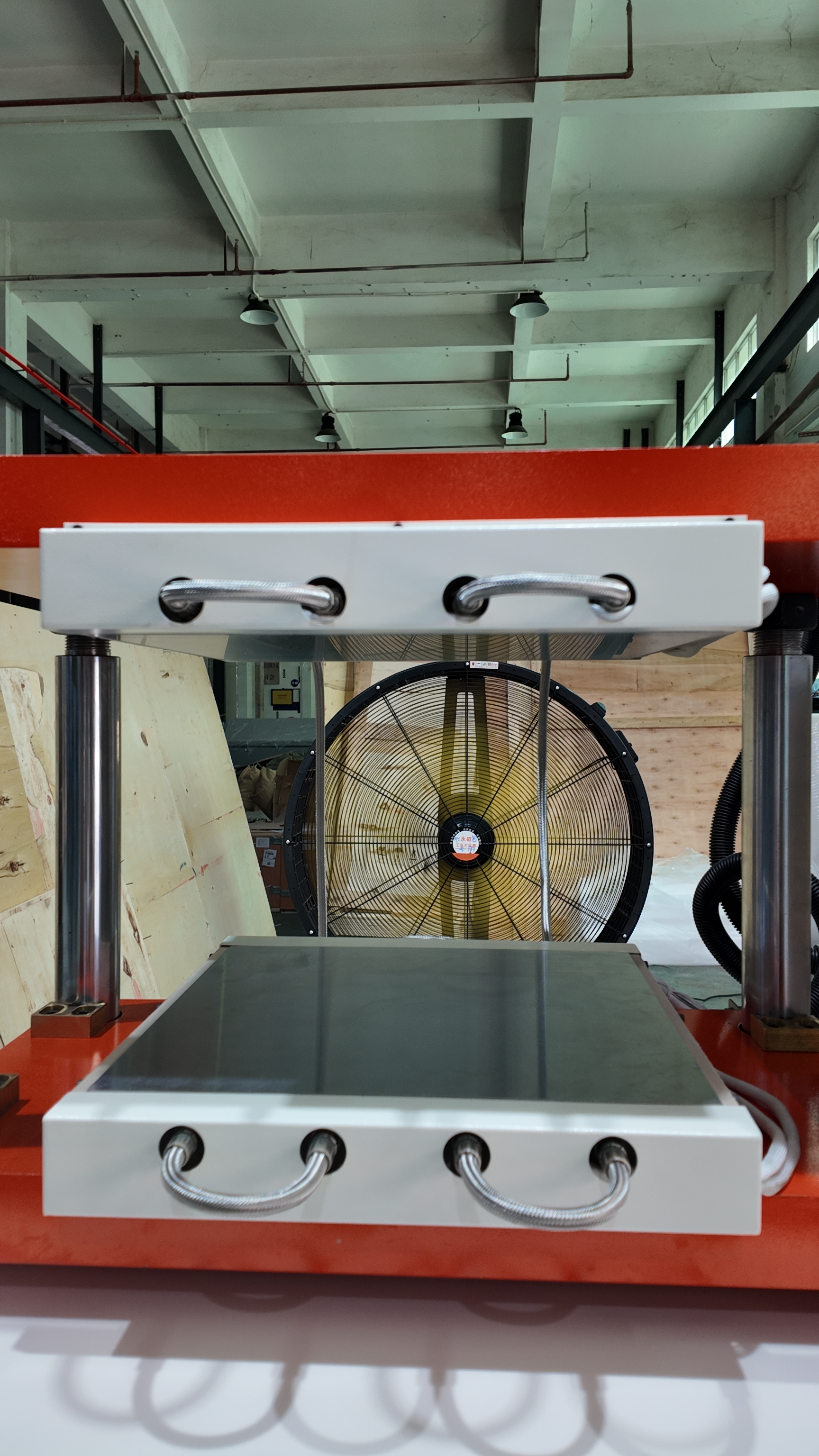

Core working principle: Hydraulic cylinder provides vulcanization pressure; electric heating tubes supply constant heat. The PLC touch‑screen control
system manages clamping, holding pressure, exhaust, vulcanization timing and fault alarm for full‑process molding.
1. Dual Control Mode: Support PC‑PLC touch‑screen automatic control or manual button operation. Built‑in wrong‑command identification avoids mis‑operation accidents, reliable performance and high automation degree.
2. Process Parameter Lock: Pre‑programmed vulcanization recipes can be locked. Operators cannot modify parameters without authorization to guarantee consistent finished‑product quality.
3. Complete Automatic Functions: Timed mold opening, adjustable automatic low‑pressure exhaust (3‑10 times/min), auto pressure reinforcement during vulcanization cycle.
4. Precise Temperature Control: Electric heating system with digital display controller, temperature accuracy reaches ±2℃. Optional water‑cooling cooling function available.
5. Safety Protection: Short‑circuit protection, overload protection, emergency stop button, vulcanization completion sound alarm for operator safety.
6. Customizable Configurations: Multiple tonnage, heating‑plate dimension options, custom specifications acceptable according to customer requirements
Item | Specification |
| Model | HZ‑7014A |
| Clamping Capacity | 10T, 20T, 30T, 50T, 80T, 100T |
| Temperature Range | Room temperature ~200℃ / 300℃ |
| Temperature Precision | ±2℃ |
| Temperature Controller | LED button / PLC touch‑screen |
| Heating Method | Electric heating, optional water‑cooled cooling |
| Heating Speed | RT‑160℃ within 20 min |
| Heating Plate Size | 300×300mm / 500×500mm / 1000×1000mm (customizable) |
| Heating Plate Layer | Single‑laye |
| Max Platen Clearance | 300 mm |
| Min Platen Clearance | 50 mm |
| Auto Exhaust | Low‑pressure automatic exhaust, 3‑10 times/min adjustable |
| Cylinder Max Stroke | 250 mm |
| Cylinder Moving Speed | 11 mm/s |
| Pressure Gauge Range | 0‑200 kg/cm |
Motor Power | 4 KW |
| Power Supply | 380V, 50Hz / 60H |
Overall Dimensio | 2000×1500×2500 mm |
| Machine Weight | 2.5 T |
