HZ‑7014A Flat Vulcanizing Machine Hydraulic Rubber Silicone Hot Press

Hydraulic cylinder provides vulcanization pressure, heating tube provides constant heating temperature. Dual manual /automatic operation. Support timed mold‑opening, automatic exhaust and pressure reinforcement function.

It mainly used in producing vulcanizing parallel adhesive type, such as conveyor belt, driving belt, and pressing rubber products, foamed plastic, thermosetting plastic (bakelite) and other plastic products. It is also suitable for O ring, the key products such as cell phone, keyboard, remote-control, sealing washer such as pressure cooker, electric cooker, mechanical accessories for household, food, health and medical treatment. At the same time, this machine can also be used in complex silicone and rubber fittings production and process, such as nipple, medical supplies, health product, artware, toy seal, electroconductive rubber, automotive rubber parts, industrial rubber parts, medical silicone product, sport equipment, all kinds of vessels, multilayer product and so on.

Dual manual & automatic operation mode

Process parameter lock to guarantee consistent product quality

Timed mold‑open, adjustable automatic exhaust & auto pressure‑reinforcing

±2℃ temperature accuracy, electric heating + optional water‑cooled

Wrong‑command identification to avoid mis‑operation accident

Multiple tonnage & heating‑plate size customizable


Model
HZ‑7014A
Clamping Capacity
10T,20T,30T,50T,80T,100
Temperature Range
RT ~200℃ /300℃
Temperature Precisio
±2℃
Heating Metho
Electric heating, optional water‑cooled cooling
Heating‑plate Size
300×300mm /500×500mm /1000×1000mm(customizable)
Exhaust Functio
Low‑pressure auto exhaust,3‑10 times/min adjustable
Cylinder Max Strok
250mm
Power Suppl
380V,50Hz/60Hz
Motor Powe
4KW
Dimension
2000×1500×2500mm
Weight2.5T

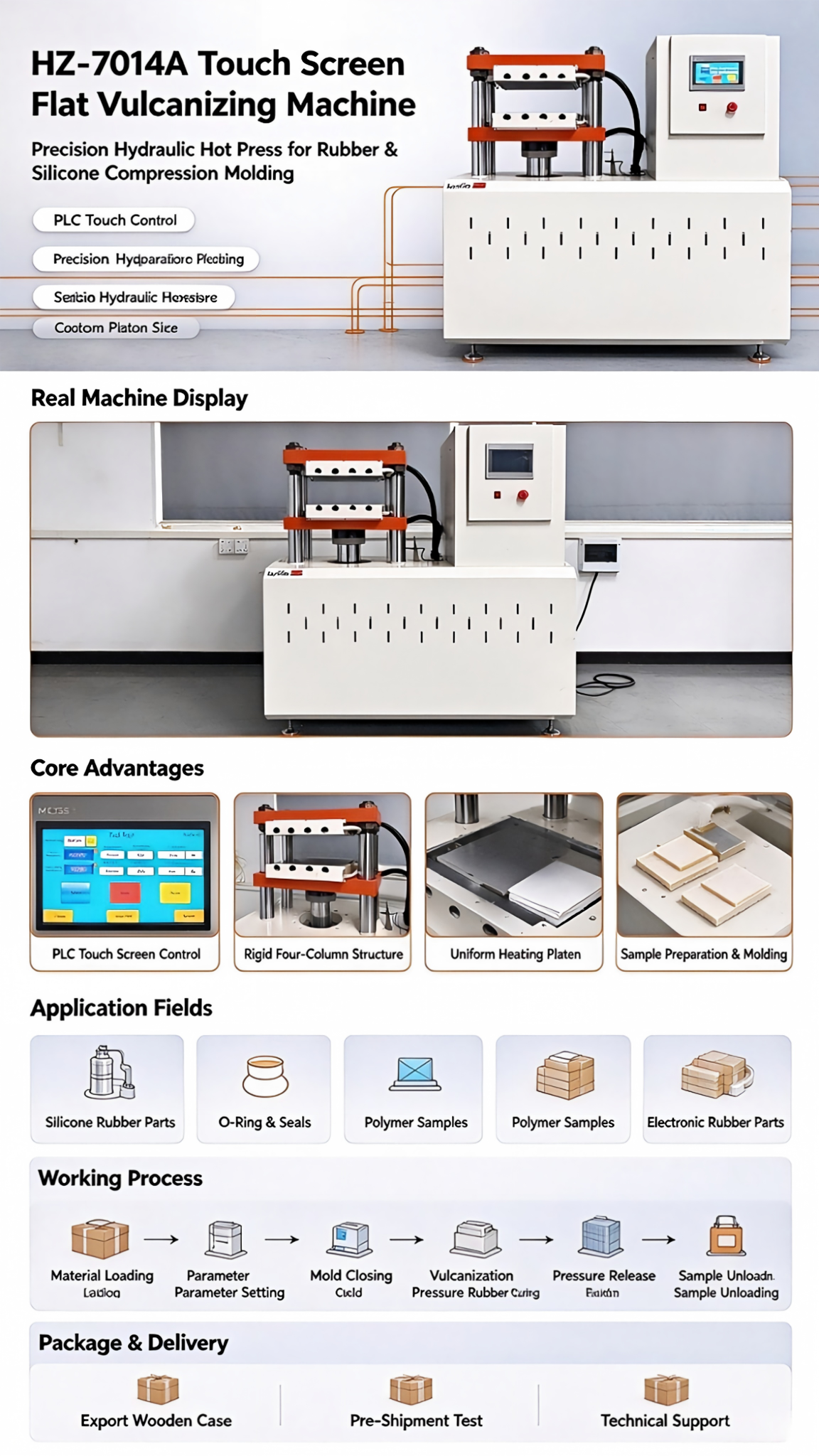

HZ‑7014A Flat Vulcanizing Machine.png
