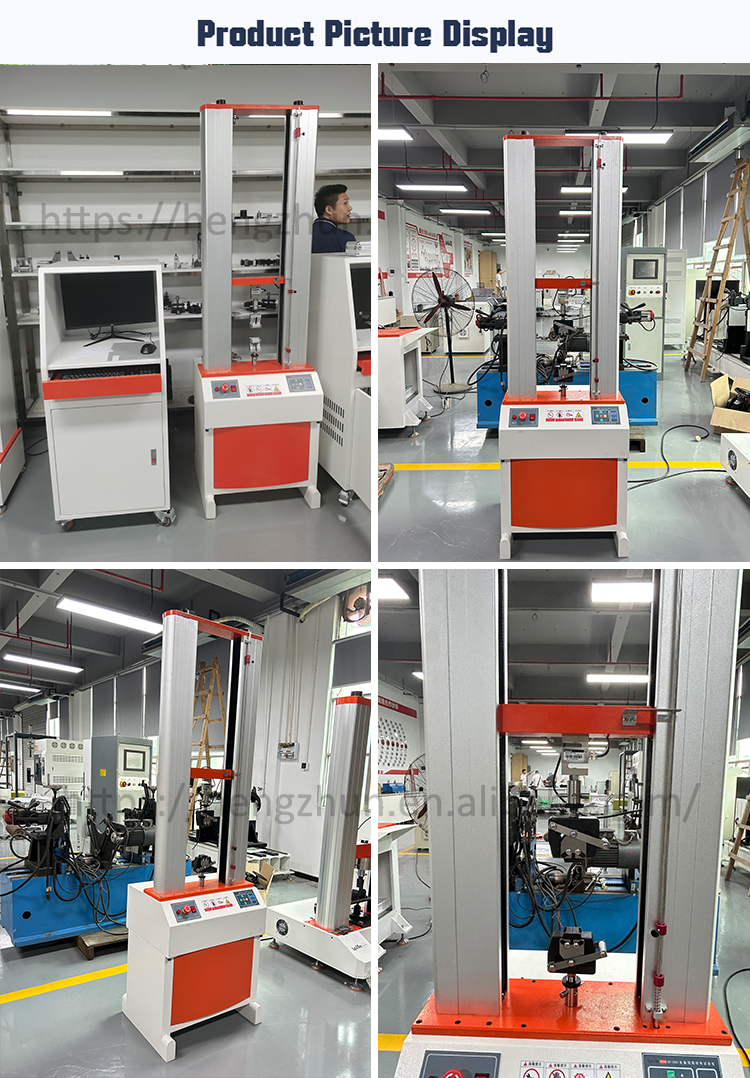

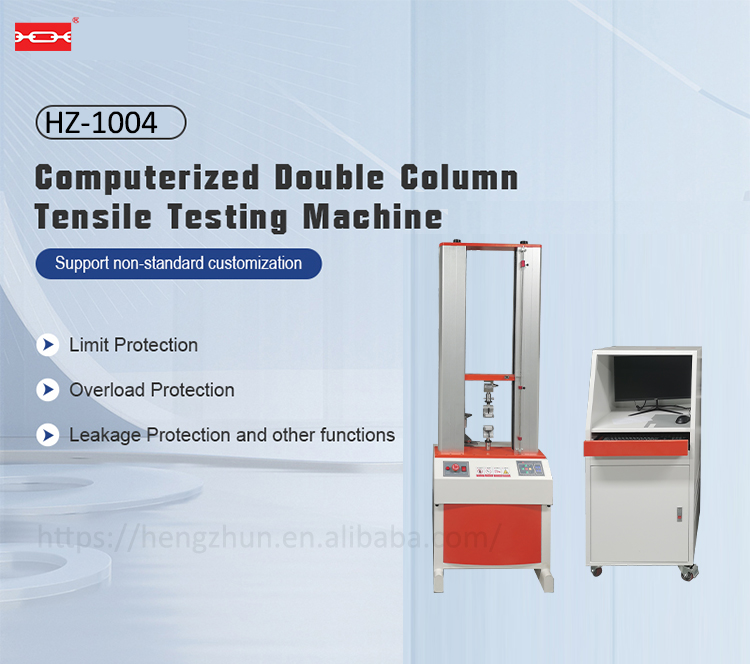

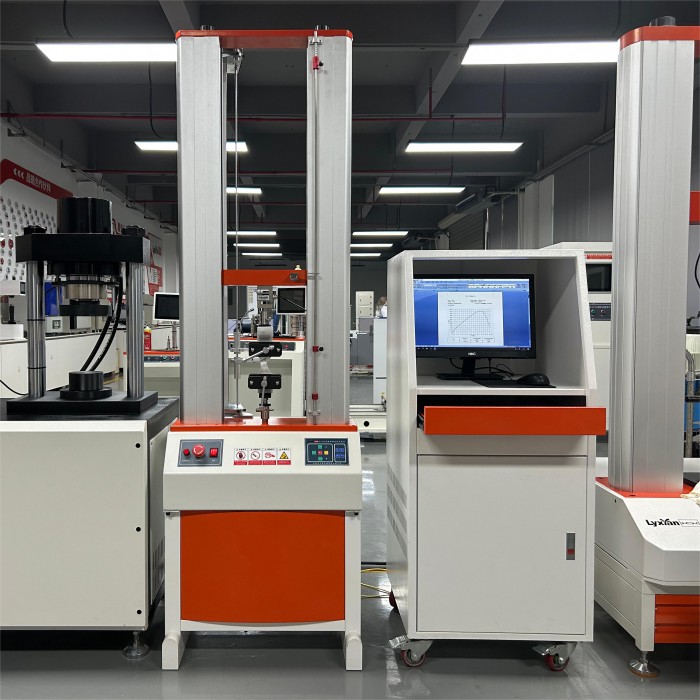

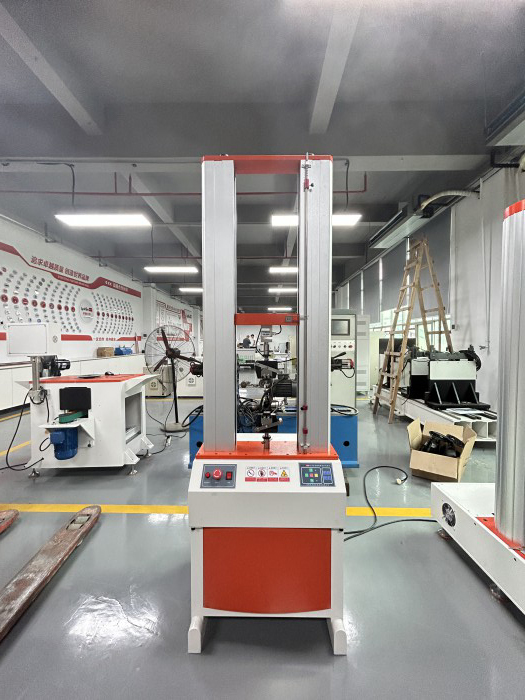

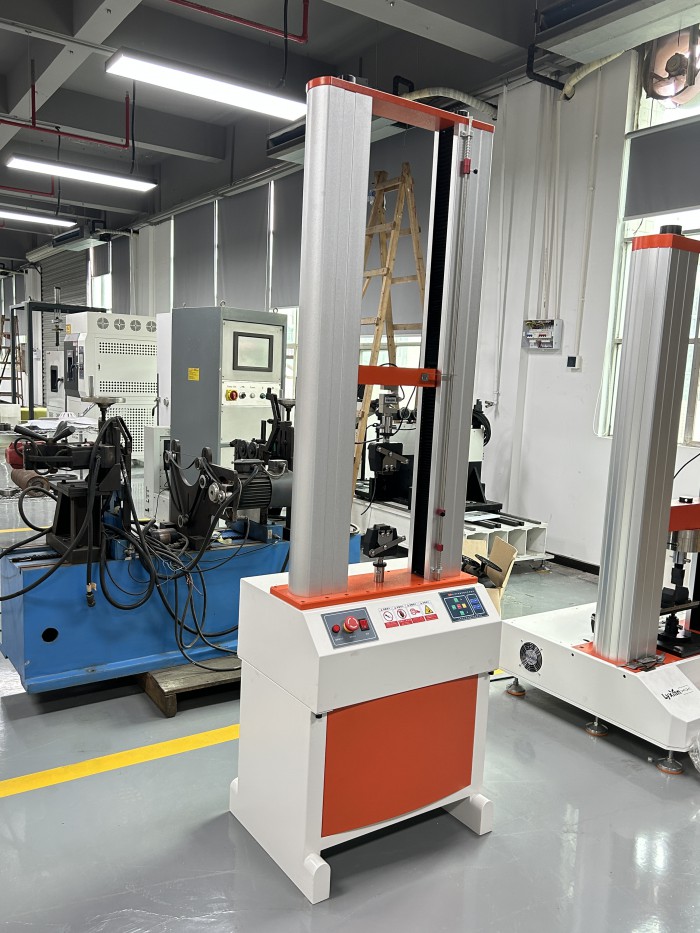

ASTM D2256 Woven Webbing Tensile Strength Universal Testing Machine HZ-1004A

Equipment summary:

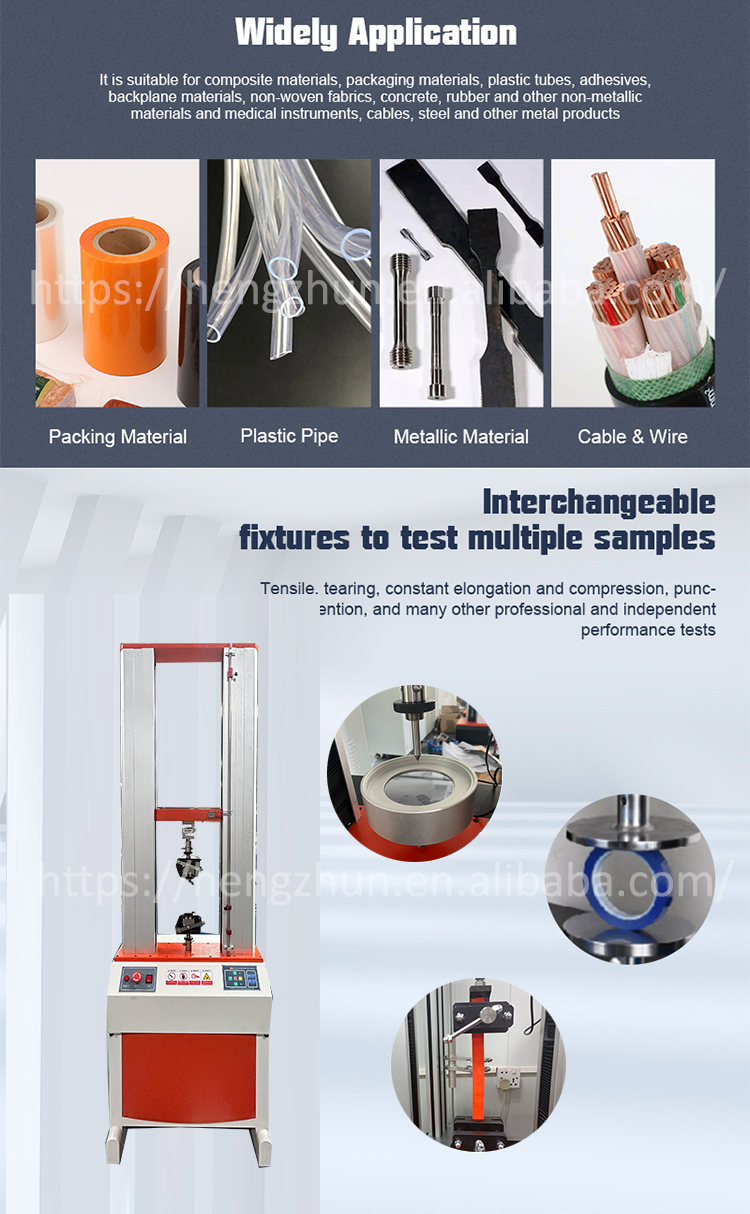

Computerized servo ISO 13934 Fabric woven tape Tensile testing machine equipment HZ-1004A is controlled by computer and printing out the testing report; The outward appearance used the closing board dealing with high-level baking varnish, which obviously elegant appear. It especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2KN.

Main feature:

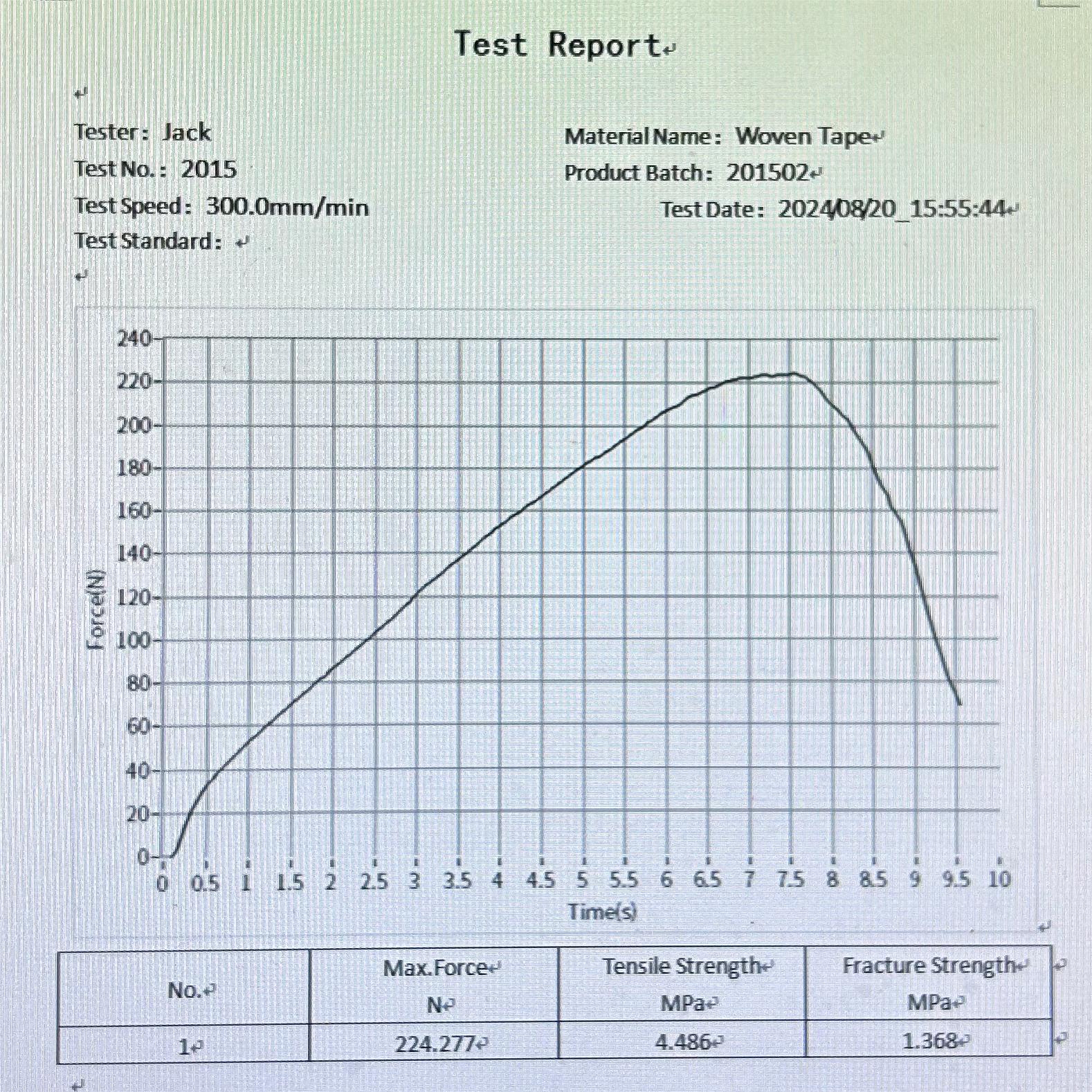

Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.

Corresponding standard:

ISO 13934

Technical parameter:

Model	HZ-1004A
Max load	100N, 200N, 500N, 1KN, 2KN option
Accurate grade	1grade /0.5 grade
Effective measuring range	0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy	the value ±1% / the value±0.5%
Tester resolution	Max load 1/200000, constant the resolution
Load sensor	Basic configuration: sensor(max load): one
Load sensor	Extended configuration: can add more sensors
Effective testing width	300mm (can be customized)
Effective tensile stroke	800mm;1000mm;1200mm (can be customized)
Range of testing speed	0.001~500mm/min
Accuracy of displacement measurement	Tolerance: ±0.5%/ tolerance: ±0.2%
Accuracy of measured deformation	Tolerance: ±0.5% (customer to choose larger or small deformation)

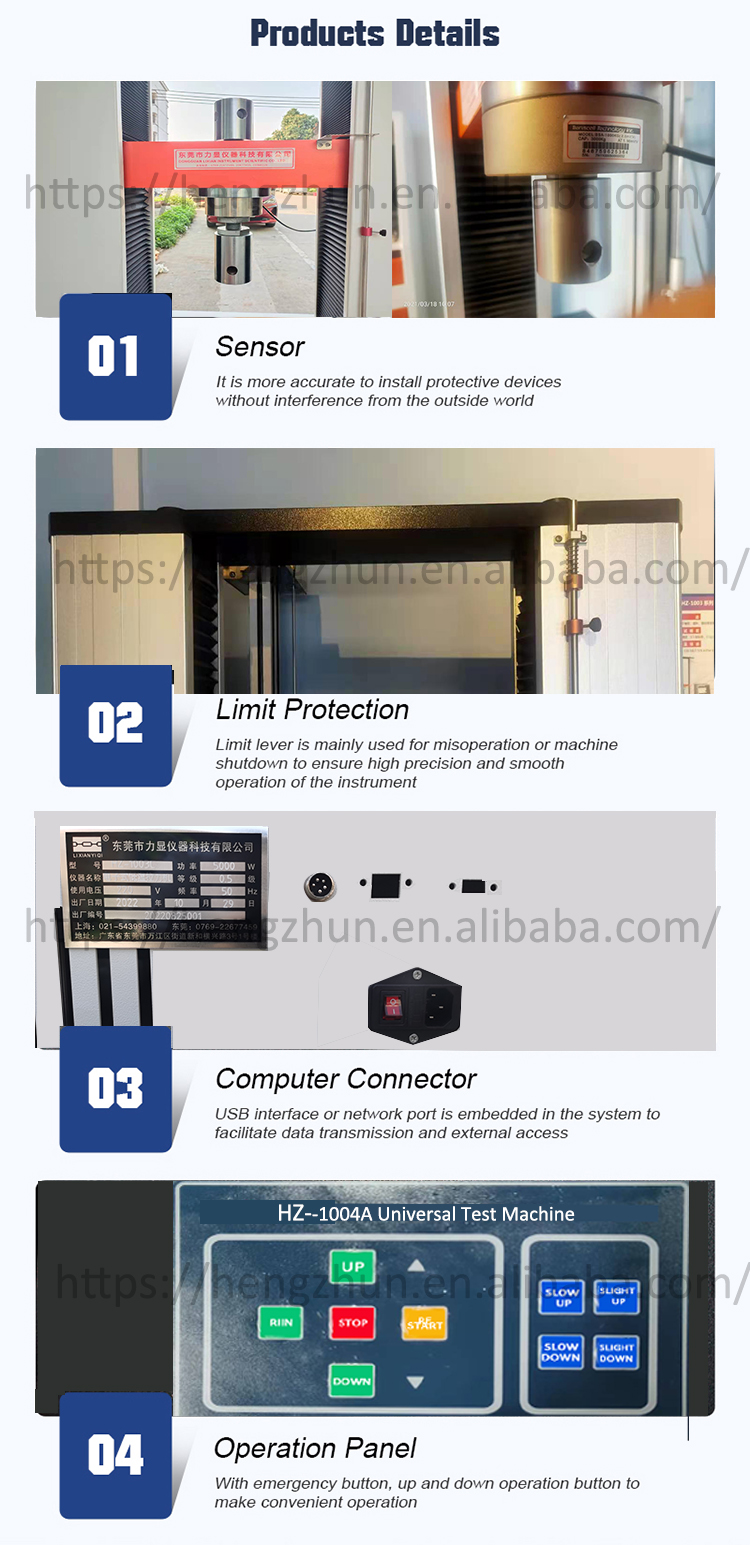

safety	Electronic-limit protection
Testing platform moving device	Fast /slow two speeds to control, can jog
Return back	Manual or automatic operation. After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10%, automatic protection

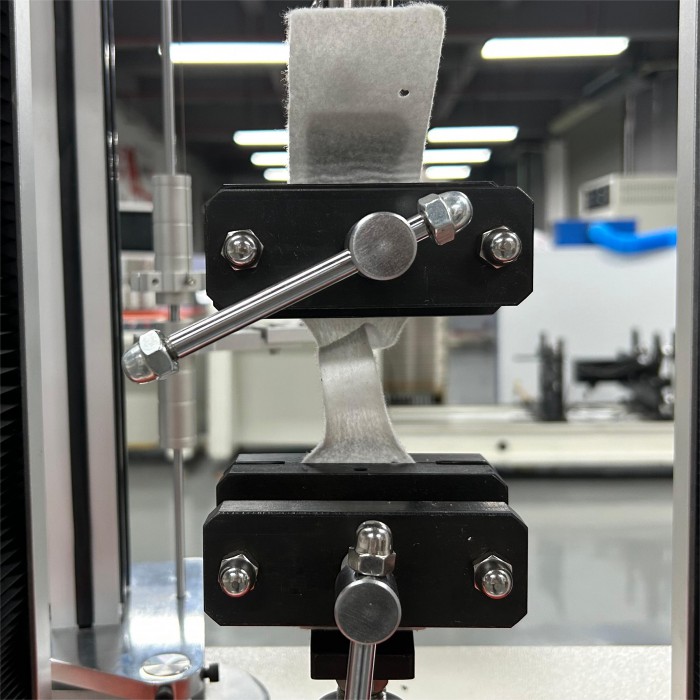

Fixture	According to customer's need
Machine size	65x36x210cm (LWH)
Power system	Panasonic AC Servo Motor + Driver + high-precision ball screw
Power supply	220V, 50HZ
Machine weight	(about) 160 KG
Units	KG, N, LB, TON can be exchanged.
