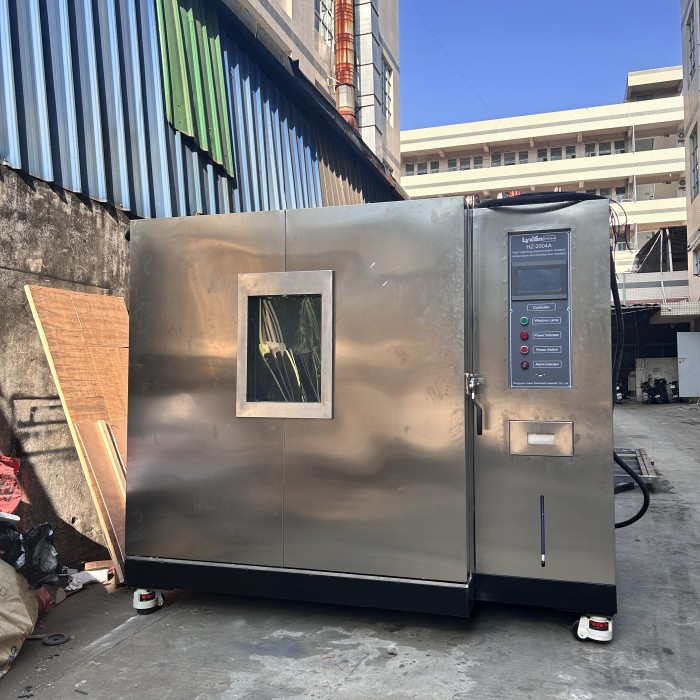

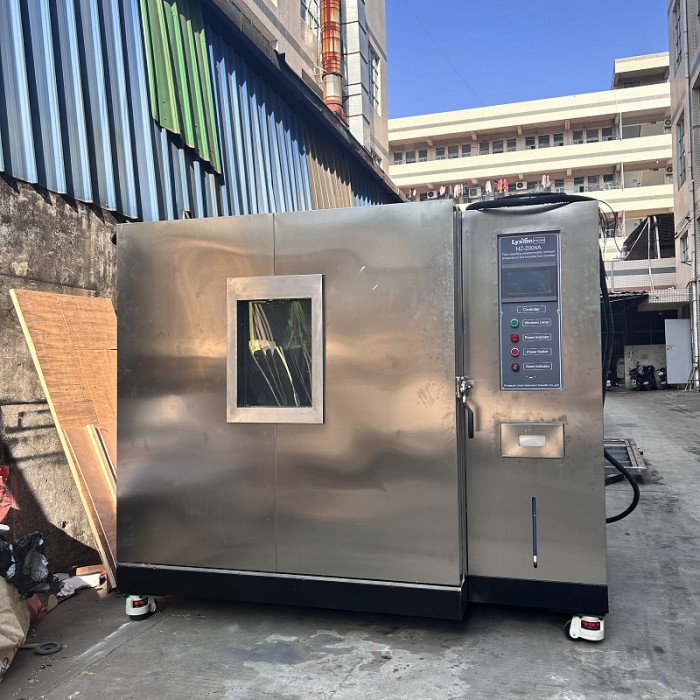

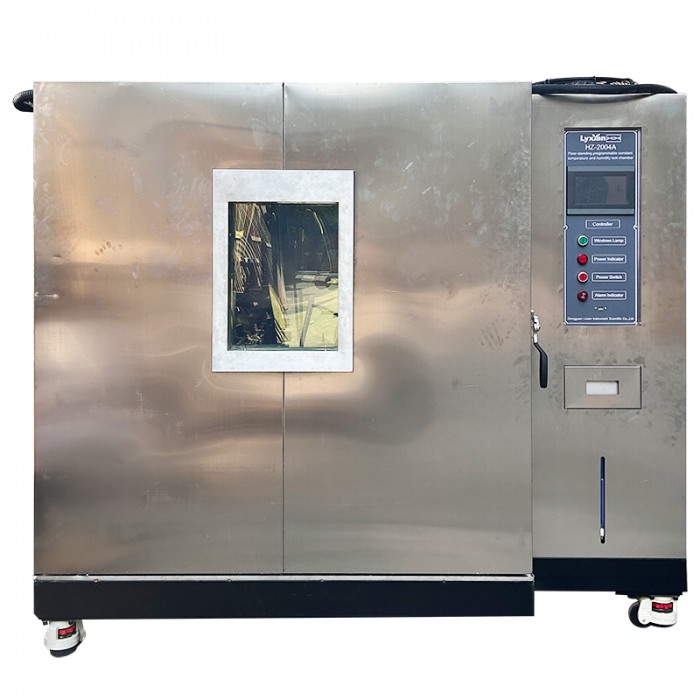

Electronics Constant Temperature and Humidity Testing Chamber Equipment 1000L Capacity

Programmable constant temperature and humidity testing machine is applied to test the materials such as Electronics materials in heat-resistance,cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

Equipment summary:

Programmable constant temperature and humidity testing machine is applied to test the materials such as Electronics materials in heat-resistance,cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.


Specification
Model number
HZ-2004
Application
box, package walk-in Temperature Test Chamber
Temprature range
-70 °C to 200 °C
Temperature accuracy/tolerance:
≤ +-1.0 °C

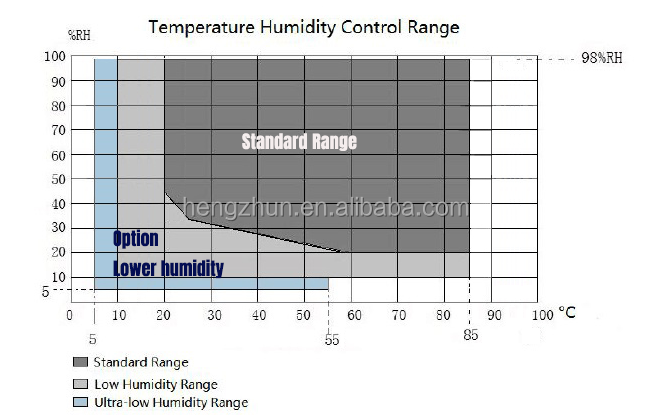

Humidity range:
5% ~ 98% RH
Humidity accuracy:
0.1% RH
Heating time:
1 °C/min to 3 °C/min
Cooling time:
average about 1~1.5℃/minute
Inner box material
1°C/min
Humidity tolerance / fluctuations:
≤ +-2.0%RH
Power Ratings:
 3phase 400V AC @ 50/60Hz

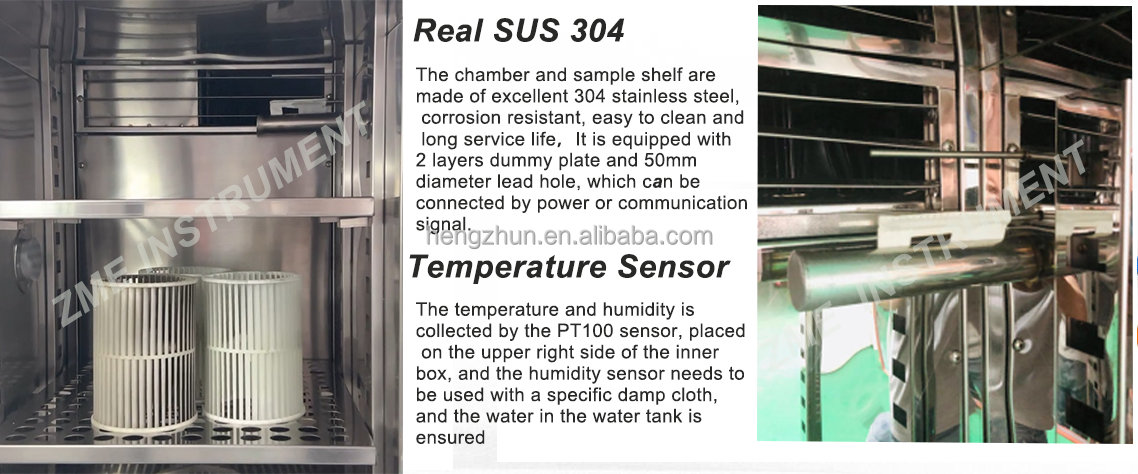

Internal Chamber Material:
stainless steel 304
