Flat Hot Press Machine, Rubber PVC Vulcanizing Molding Equipment

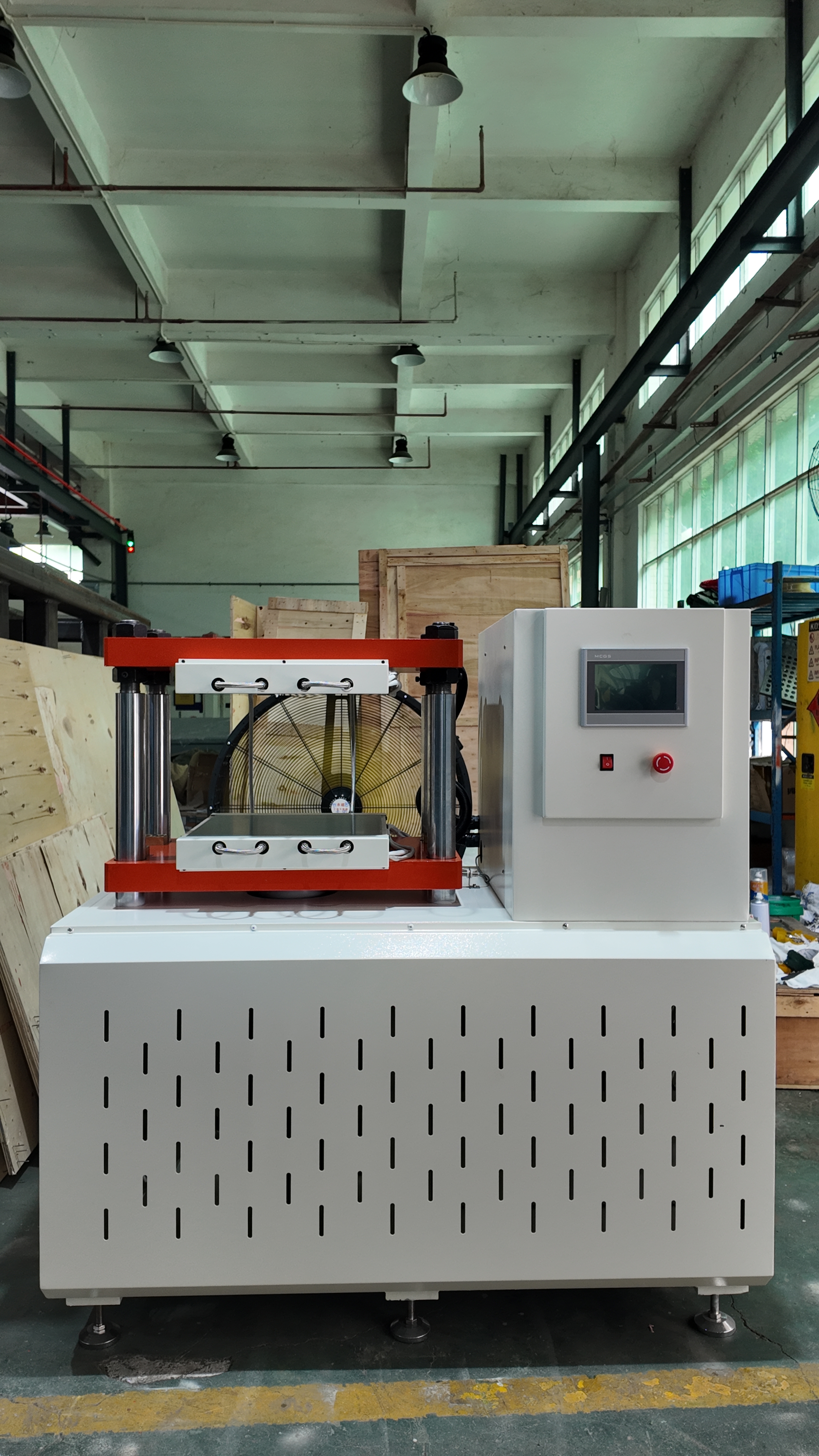

Flat Plate Vulcanizing Hot Press Machine Hydraulic Rubber Vulcanizer for Rubber Compression Molding

This series flat hot press is core processing equipment for various molded & non‑molded PVC and rubber products. It is also applicable for thermosetting plastic, foamed rubber‑plastic forming.

Equipped with independent actuating unit and electrical control system with centralized button operation. Working pressure and heating temperature can be adjusted within specified range. Two operation versions are available: manual operation and semi‑automatic operation. This hot press features high‑level automation, simple operation, energy‑saving and environmental‑friendly performance with reliable overall performance.

Equipment summary
Main functions
Corresponding standard
Technical parameters

This hot press machine is a hydraulic machine mainly used for vulcanizing PVC and flat belts including conveyor belts and drive belts. Its core function is to supply required pressure and temperature for vulcanization process. Pressure is generated by hydraulic cylinder from hydraulic station; heat is supplied by internal heating tubes. The control system consists of high‑low pressure pump motor, solenoid valves, vulcanization timer, motion instruction module and alarm function module.

It is widely used for vulcanized adhesive products such as conveyor belts and drive belts, pressing PVC, rubber goods, foamed plastic and bakelite thermosetting plastic.

Suitable production articles: O‑rings, mobile phone & keyboard & remote‑control rubber keypads, pressure‑cooker sealing washers, household mechanical accessories, food, health‑care and medical‑related rubber‑silicone parts.

It also supports complex silicone, PVC and rubber components: nipple, medical supplies, artware, toy seals, conductive rubber/PVC, automotive & industrial rubber‑PVC parts, medical silicone products, sports equipment and multi‑layer composite articles.

Model	HZ-7014-1000	HZ-7014-1500	HZ-7014-2000	HZ-7014-2500	HZ-7014-3000
Capacity	1000KN	1500KN	2000KN	2500KN	3000KN
Plate Size(mm)	450X450	500X500	550X550	600X600	650X650
Stroke(mm)	300	300	300	300	300
Cylinder diameter(mm)	260	320	360	400	450
Motor power (KW)	5.5	5.5	7.5	7.5	7.5
Temperature range	Normal temperature～200°C/300°C
Temperature precision	±2°C
Temperature controller	LED button type control mode
Heating method	Electric heating, water-cooled cooling, or the both
Heating rate	Normal temperature～160°C in 20min
Timer	LED display or PLC touch-screen displayer
Heating plate layers	Single-layer
Min.distance between heating plate	50mm
Exhaust	Low-pressure automatic exhaust, 3-10 times per minute (Adjustable)
Cylinder speed	11mm/s
Pressure gauge	0～200kg/sq.cm
Pressure	380V/60HZ (or 50HZ)
