Mixer Kneader Lab Internal Dispersion Kneader for Rubber Compounding

HZ‑7048 lab mixer‑kneader for rubber, silicone & plastic compounding. Pressurized sealed mixing chamber, auto temperature & time control, batch cycle 6‑10 min for lab formulation research.

1.Mixer applicable products:

(1)rubber (silicone) rubber products: all kinds of rubber ring, rubber tube, adhesive tape, rubber belt, rubber, rubber roller, sponge rubber, tire, rubber soles, oil seal, silicone rubber and other miscellaneous pieces of rubber products;

(2)The chemical industry raw materials and plastic products: all kinds of cable materials, master batch and carbide of high filling, EVA, PVC, low smoke, no skull material fuel resistance, TPR cable, heat shrinkable tube, calcification of high filling material, rubber blends chemical raw materials.

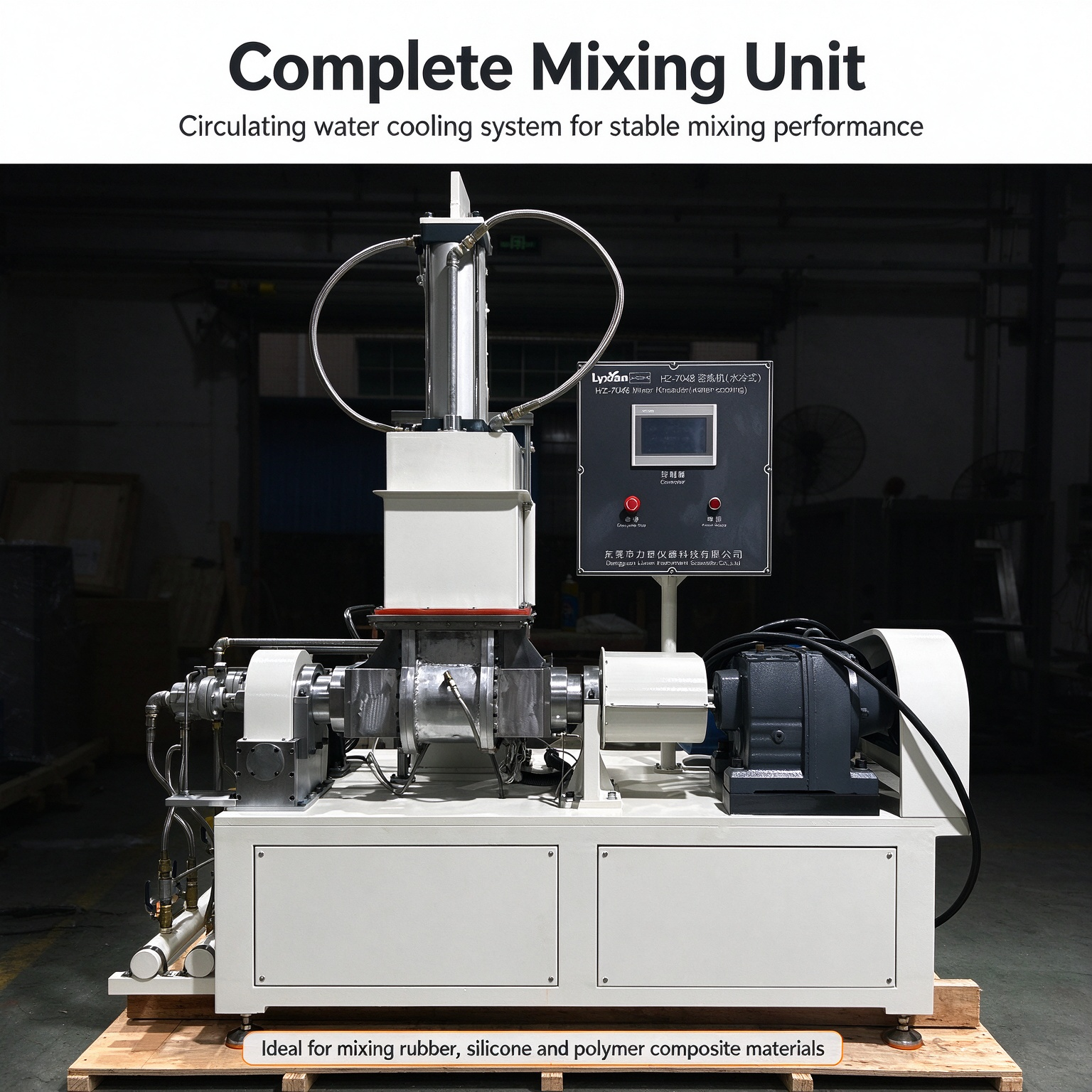

2.Mixing chamber, pressure mound, rotor and other components are used jacket structure, you can access the water to cool to meet a variety of rubber refining (plastic) process requirements to ensure that the processing of material quality and stability.

3.Rotor angle of the rotor and the length of the work length design is reasonable, can make the material to obtain the best kneading effect, the rotor edge and the end of the surfacing wear-resistant carbide.

4.The chamber is connected with the frame wall, and the secondary corner sealing structure is adopted. The dustproof effect is good.

5. The machine is durable and easy to install and maintain.

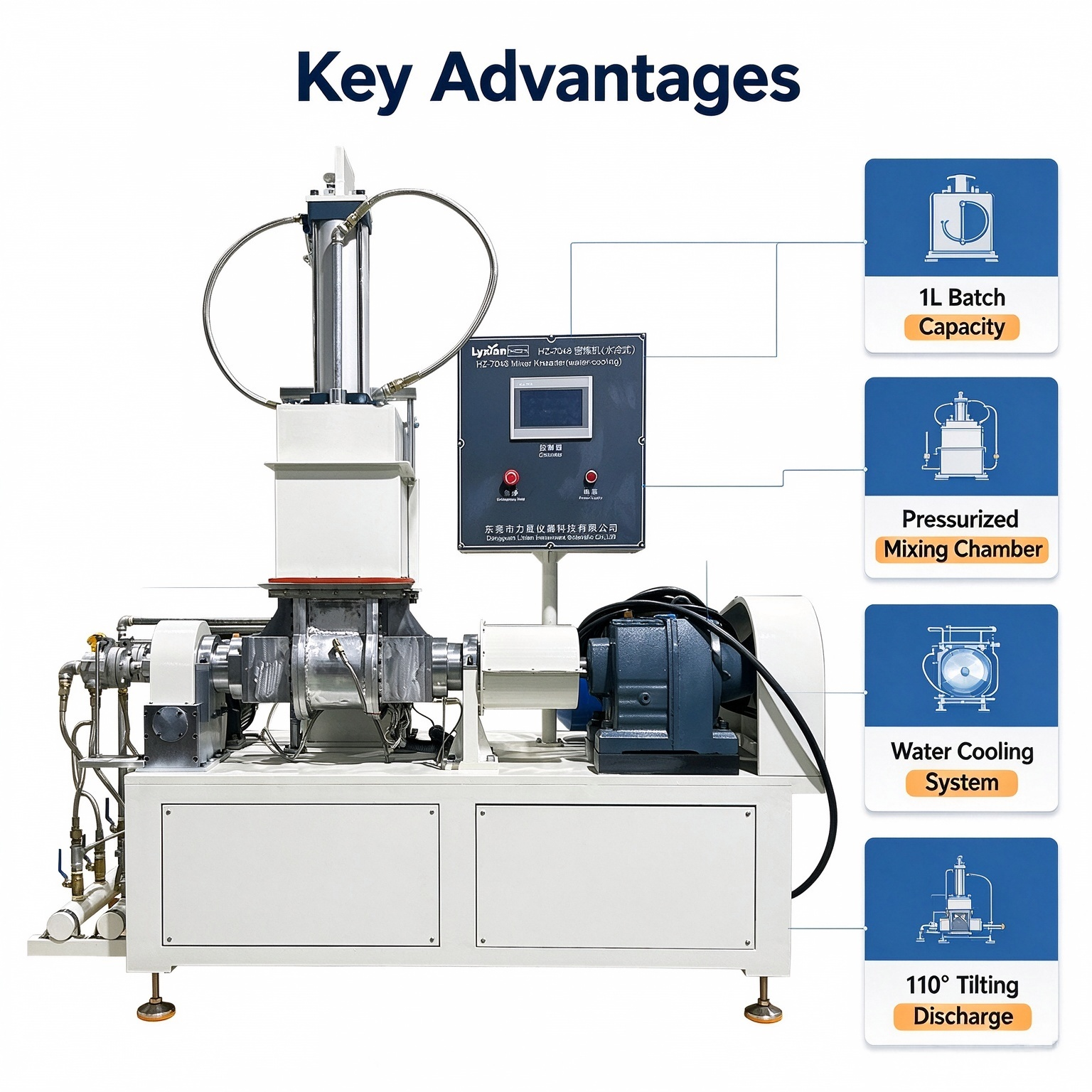

  1. Automatic temperature & time control system ensures repeatable rubber mixing results batch‑to‑batch.

  2. Easy‑to‑clean mixing chamber, convenient for color / formula change‑over for rubber lab research.

  3. Short batch cycle: 6‑10 minutes per batch; mixing output performance equals 2 sets of open rubber mixing mill.

  4. Pressurized sealed mixing chamber delivers high‑dispersion kneading performance and reduces dust pollution.

  5. Simple installation, user‑friendly operation and low running‑maintenance cost.

Rubber manufacturing factories, material laboratories, R&D institutes, plastic and chemical compounding workshop. Main test sample: various rubber materials (natural rubber, synthetic rubber, silicone rubber, rubber master‑batch).

Volume

L

1

Drive motor

kw

3.75

Turning motor

kw

0.2

Turning angle


110

Air compressor

kw

2.2

Water cooling

mpa

0.2-0.4

Electric heating

Kw

1

Weight

KG

800

Size

m

1.6*0.9*1.9

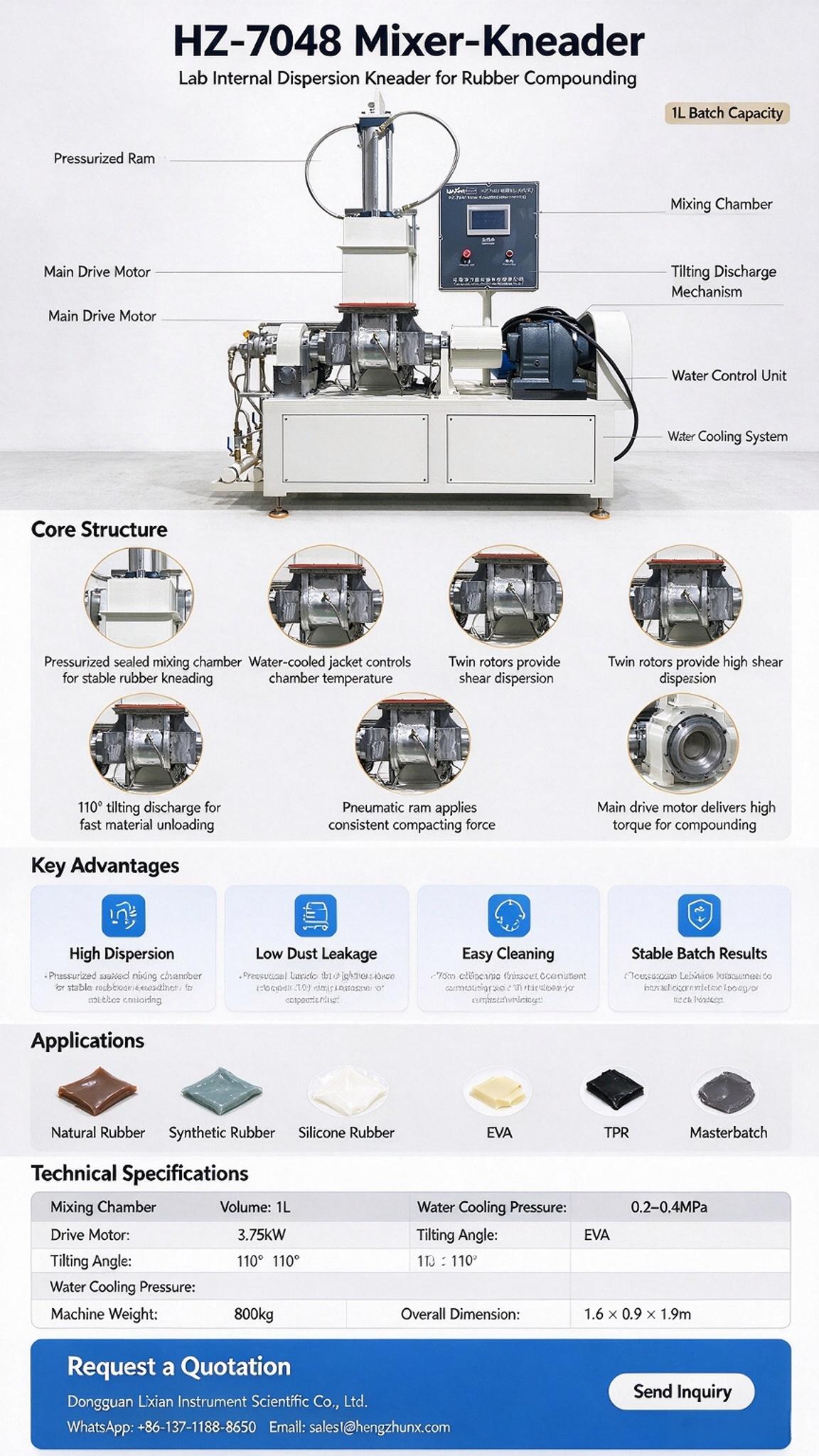

Internal mixer(6).jpeg
