Moving Die Rotor Rheometer Rotorless Rubber Cure Tester

HZ‑7001A Moving Die Rotor Rheometer (MDR / rotorless curemeter) is widely‑accepted lab instrument for rubber factory quality inspection, incoming rapid check and rubber material fundamental research. It delivers precise test data for rubber compound formula development & optimization. It accurately measures rubber scorch time, optimum cure time, vulcanization index, minimum torque ML, maximum torque MH and other critical vulcanization parameters for un‑vulcanized rubber materials.

Compliance Standards: ISO 6502:1991, ASTM D5289‑95

Equipment summary
Main functions
Corresponding standard
Technical parameters

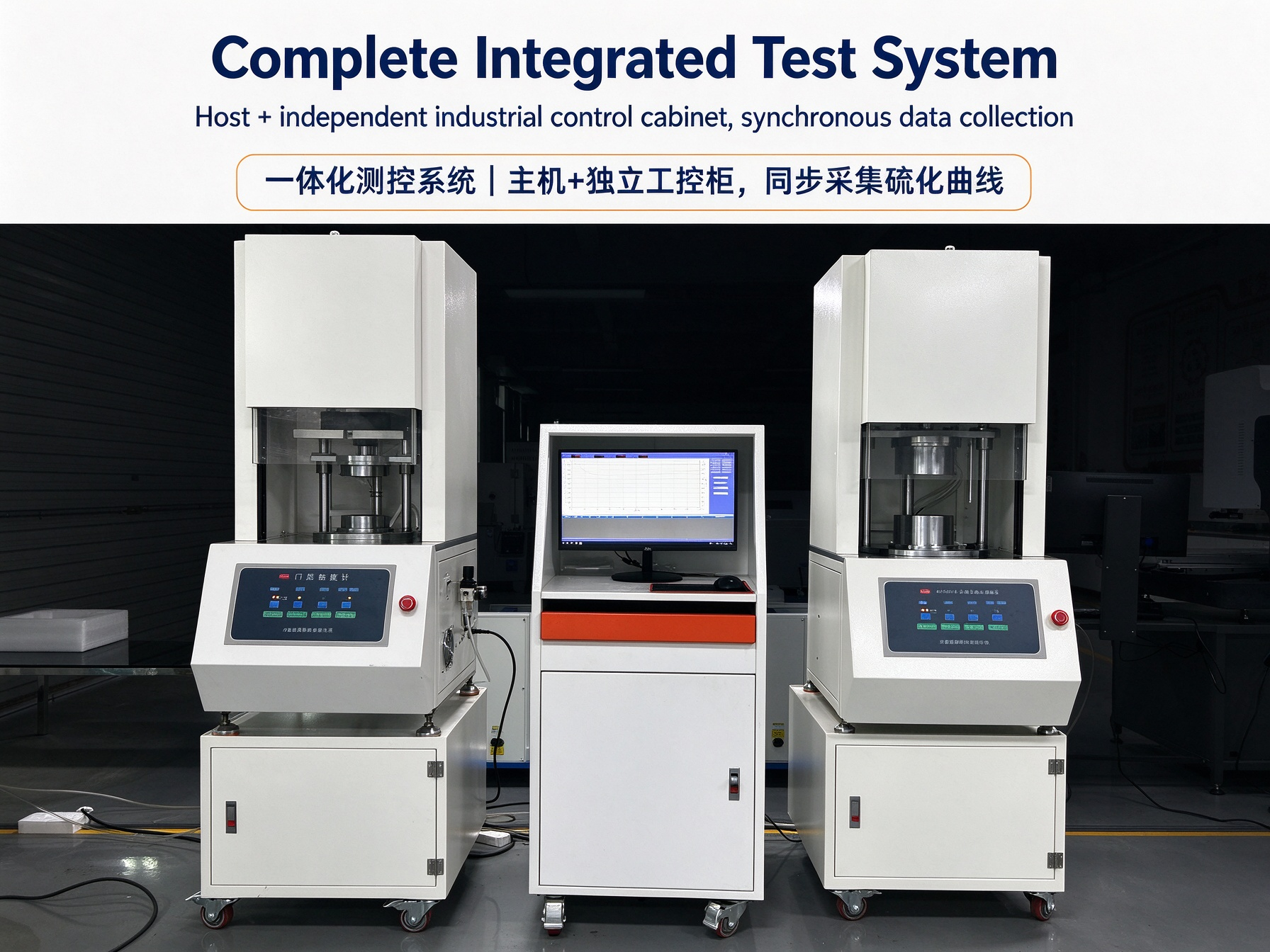

This moving‑die rotorless rheometer is composed of main testing host, high‑pressure pneumatic sealing system, Alpha high‑precision torque force‑sensor, closed heating cavity, stepping amplitude‑modulation motor, PID intelligent temperature controller, industrial computer and dedicated analysis software.

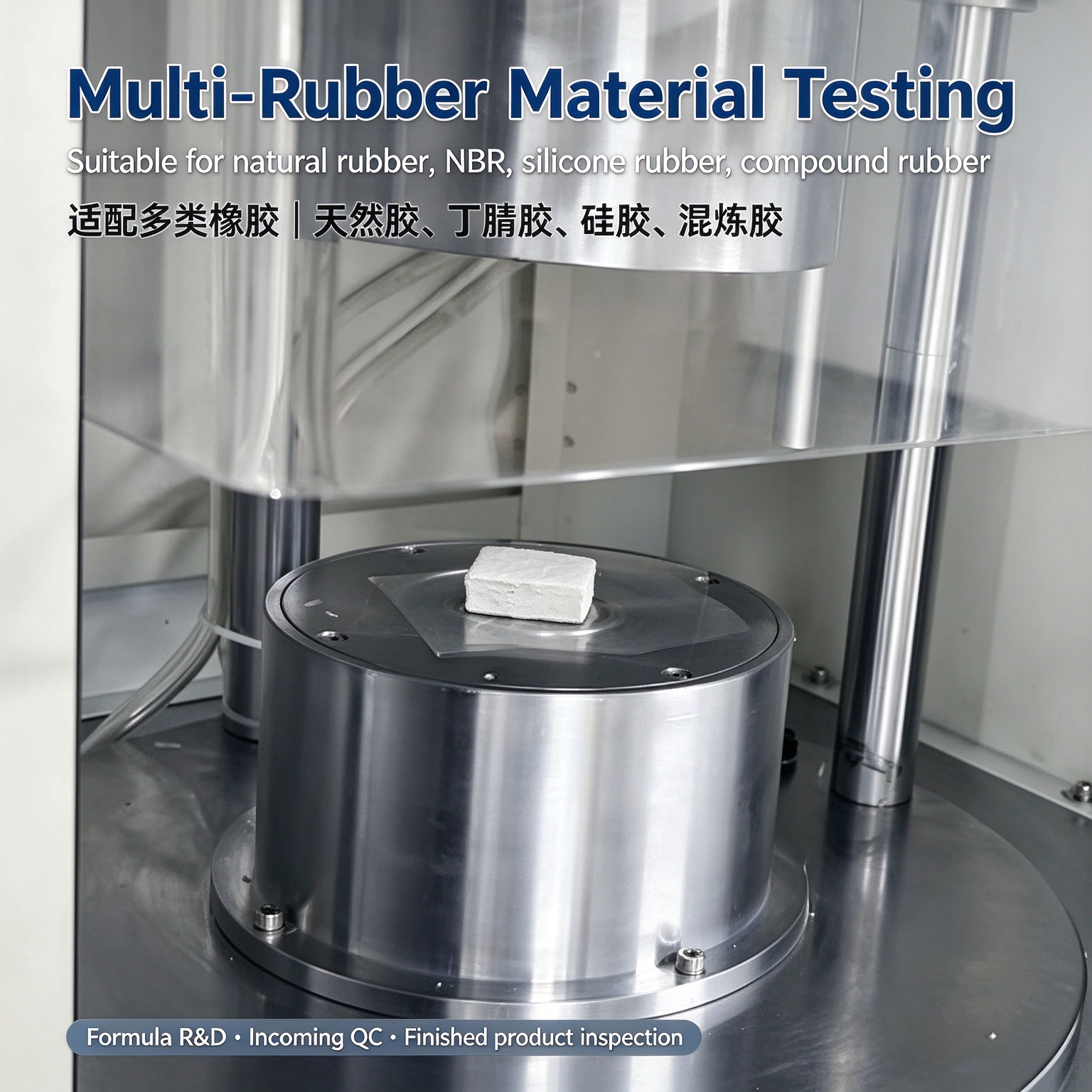

Rubber sample is placed inside nearly fully‑sealed biconical cavity under constant test temperature. Lower die generates small‑amplitude reciprocating oscillation, applying shear force to rubber specimen. Instrument measures reaction torque generated by rubber sample shear deformation. As rubber vulcanization proceeds, shear modulus rises; system records torque‑time curve (vulcanization curve). All curing characteristic values are automatically computed and stored for review or print‑out.

High‑pressure pneumatic sealing system eliminates manual‑operation deviation, good adaptability for rubber compound with volume expansion / shrinkage during vulcanization, including carbon‑filled fluororubber and high‑stiffness elastomer materials.

Fast heating & high‑precision temperature control: Heating rate approx.15℃/min, finish heating‑up within 3 minutes; temperature accuracy ≤ ±0.15℃; intelligent PID auto‑adjust parameters. Temperature recovery time less than 1.5 min.

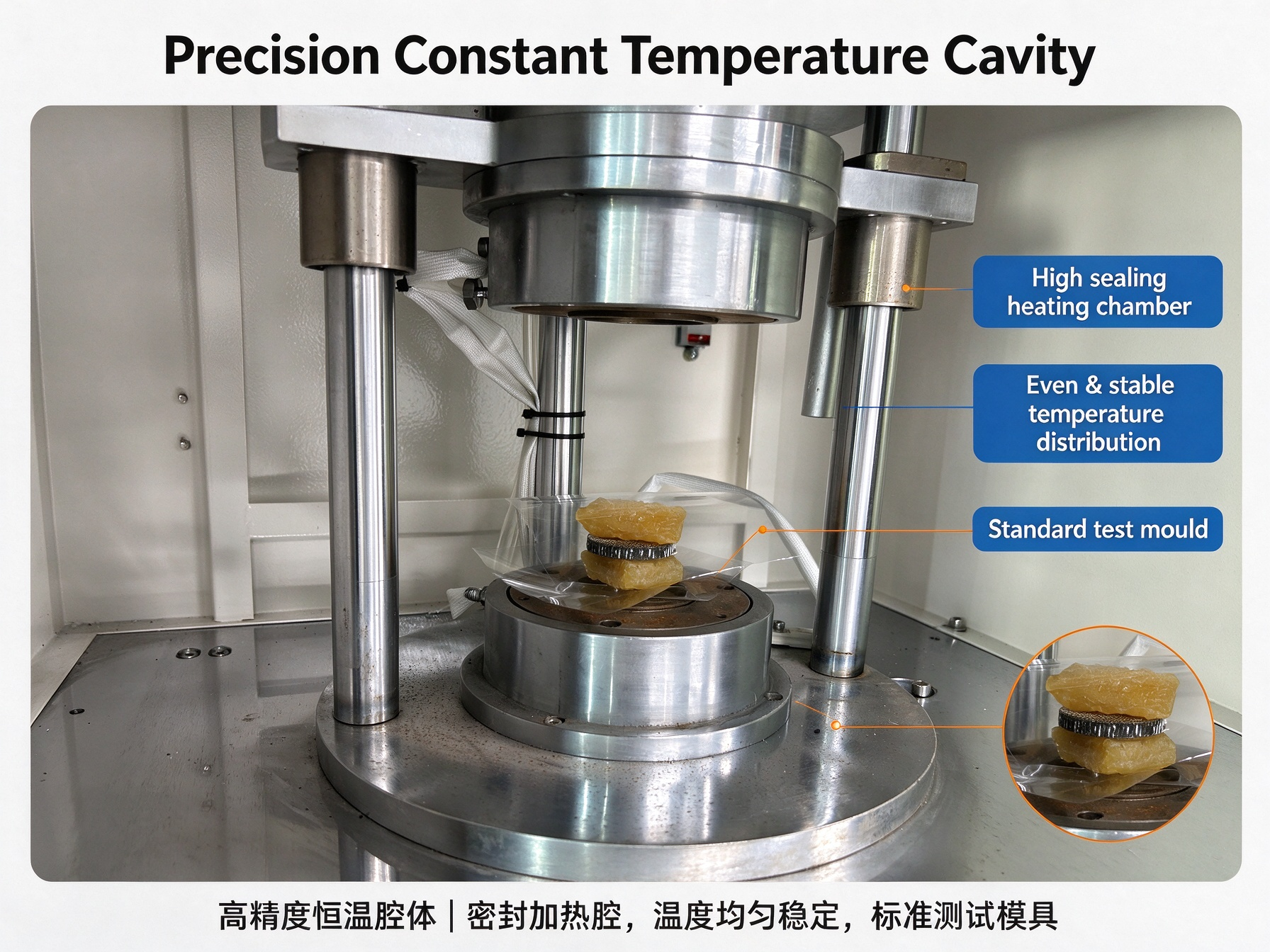

Advanced Alpha closed sealed cavity: Distinct from ordinary open‑cavity rheometer, excellent test repeatability for rubber batch‑to‑batch comparison.
High‑precision torque sensor: Torque reading resolution reaches 0.001 N·m, torque accuracy 0.3%. Torque measuring range:0‑20 N·m.
Adjustable oscillation swing angle: ±0.5° / ±1° / ±3° optional to satisfy different rubber test requirements. Swing speed:100 r/min (1.66 Hz).

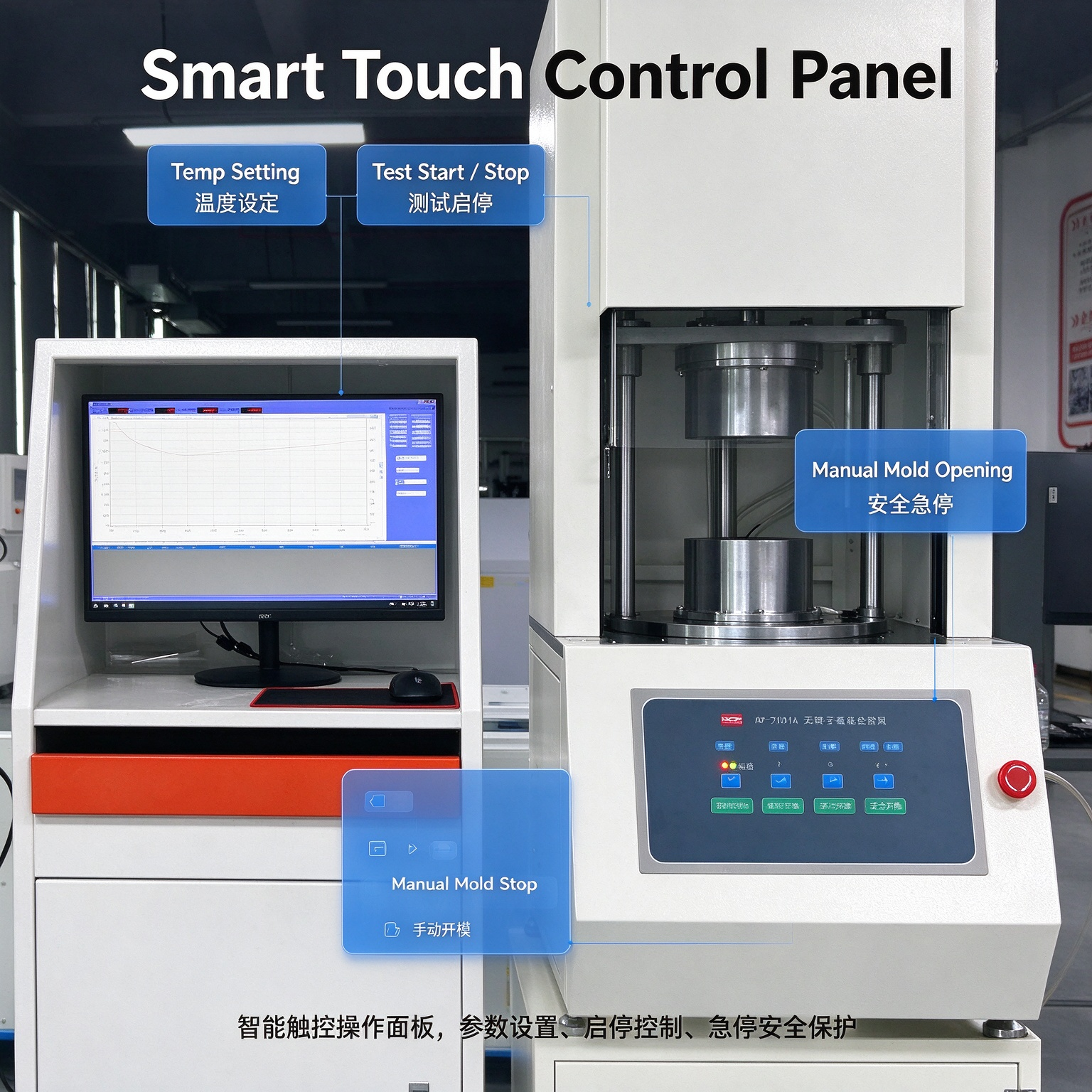

Double operation modes: Mouse computer control OR local touch‑key panel operation.
High‑speed data acquisition: Acquisition rate up to 200 times / second, capture subtle torque change during rubber cross‑linking reaction.
Multi‑unit conversion: Support multiple torque units & temperature units(℃/℉/K).

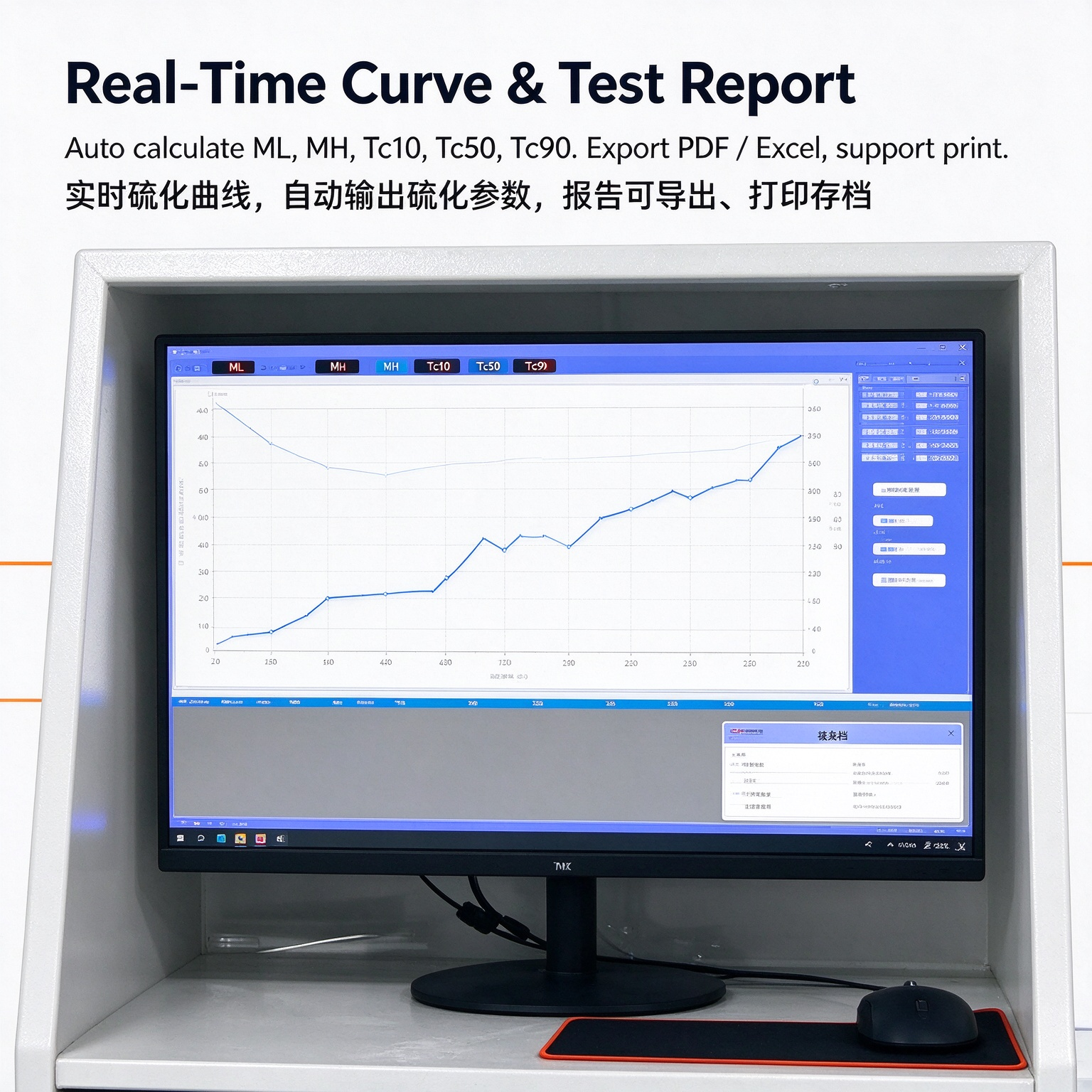

Automatic report output: Auto calculate ts1, ts2, t10, t30, t50, t70, t90, Vc1, Vc2, ML, MH; save, preview and print complete test report with vulcanization curves.
Multi‑language UI: English / Simplified Chinese / Traditional Chinese software interface.
Stable pneumatic sealing: 0.5‑0.65 MPa compressed air requirement; replaceable cavity sealing accessories for long‑term usage.

Model	HZ-7001A
Temperature range	RT—200℃
Minimum temperature display	0.1℃
Temperature fluctuation range	±0.15℃
Heating rate	About 15℃/min
Torque range	0-20mm
Torque minimum reading	0.001nm
Swing angle	±0.5°/ ±1°/ ±3°(options one of them)
Swing speed	100r/min(1.66HZ)
Torque accuracy	0.3%
Torque unit	N.m、N.cm、N.inch、kN.m、kN.cm、kN.inch、kg.m、kg.cm、kg.inch、lp.m、lp.cm、lp.inch、g.m、g.cm、g.inch
Temperature display resolution	0.01℃
Temperature recovery time after clamping	< 1.5min
Temperature unit	C (degrees Celsius), F (Fahrenheit), K (Kelvin)
Acquisition rate	200time/s
Software langague	English, Chinese Simplified, Chinese Traditional
Standard	GB/T 16584、ASTM D5289、ISO 6502
Calculation parameters	ts1、ts2、t10、t30、t50、t70、t90、Vc1、Vc2
Software connection	USB2.0
Dimensions	Based box： 565851 Main machine：6252128 Computer cabinet：5656130
Printing contents	date, time, temperature, vulcanization curve, temperature curve, ML, MH, ts1 ,ts2, t10, t50 ,t90, Vc1, Vc2
Power	220V±15V
Air pressure	0.5Mpa--------0.65MPa (User need to prepare an air tube with an outer diameter of 8mm)
